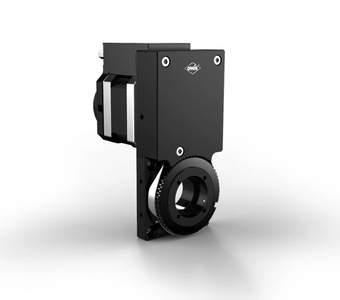

Rotary Stages DRTM 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_drtm_40.pdf

Description

The belt driven DRTM 40 rotary stages allow a much higher rotational speed in comparison to the DMT 40, but with less resolution.

They are suitable for both horizontal and vertical rotational axes.
The precision ball bearings and the preloaded belt drive allow nearly backlash-free positioning. The DRTM 40 are compatible with the SYS 40. They are available with two different motorization and have an integrated reference switch.

All aluminium parts have a top quality black anodized protective coating.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision four-point contact ball bearings
  • synchronous belt-drive
  • rotary table with aperture
  • Hall-effect reference switch
  • 2-phase step motor or DC servo motor
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
44.040.256C DRTM 40-D25-HSM

rotary table with ø 25 mm retainer and ø 20 mm aperture, 2-phase step motor and Hall-effect reference switch

44.040.25GE DRTM 40-D25-HiDS

rotary table with ø 25 mm mount and ø 20 mm aperture, DC servo motor with encoder and Hall-effect reference switch

14.021.1095 RT 40-20-R-DRTM 40

slide SYS 40, 19.5 mm, with knurled screw and on the frontal threads for M4, for vertical mounting of DRT(M) 40

G

mounts for slack optics - s. product info G

EINS, FASE 40

reduction and fibre adapters - s. product info EINSR FASE 40
