Rotary Mounts DOH 25

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_doh_25.pdf

Description

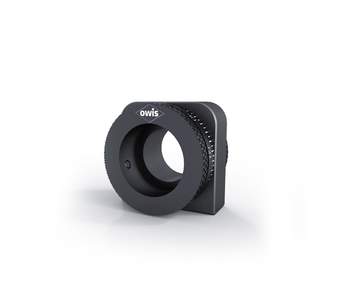

The DOH 25 rotary mounts admit like the proven DOH 40 and DOH 65 mounted optics such as retardation plates and polarisators with a maximum thickness of 8 mm, in order to rotate these over 360° and to fix the adjusted position with a grub screw. To make the adjusting of optics easier the DOH 25 have a scale with 5° partition.

To mount them on slides RT 25, the rotary mounts have M2.5 threaded holes. Additionally, all holders have a M4 thread to put them on a pin.

When mounted on system rails S 25 LL with slides RT 25, the 25 mm height of the optical axis is guaranteed.

  • for use with SYS 25
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ø 16 mm retainer, ø 13 mm aperture
  • ways of installing
    - on slide RT 25
    - on pin

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
12.410.1600 DOH 25-D16

rotary mounts, for mounted optics ø 16 mm

12.021.0015 RT 25-15-R

slide SYS 25, 15 mm, with knurled screw

12.022.0015 RT 25-15-M2,5

slide RT 25, 15 mm, with hexagon socket head cap screw

21.115.4325 STF 15-25-AM4-3

pin adapter M6-M4
