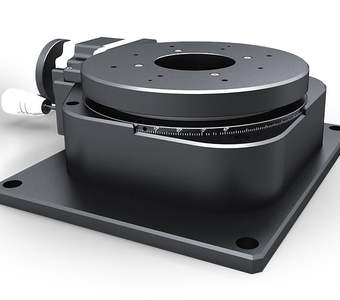

Rotary Measuring Stages with angular measuring system DMT 200N-IMS

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dmt_200n-ims.pdf

Description

These DMT 200N-IMS precision rotary measuring stages allow unlimited rotation angles and are suitable for horizontal and vertical rotational axes.

The precision ball bearings and the worm gear drive are preloaded, to allow a nearly backlash-free positioning.

The DMT 200N-IMS rotary measuring stages are equipped with an angular measuring system with 0,001° resolution and available with different motorizations.

All aluminium parts have a top quality black anodised protective coating.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision angular contact ball bearings
  • preloaded worm gear
  • rotary table with aperture
  • Hall-effect reference switch
  • 2-phase step motor or DC motor
  • with integrated angular measuring system
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
43.201.06AGM DMT 200N-M6-HiSM-IMS

rotary measuring stages with angular measuring system, rotary table with centre bore M6, with step motor and Hall-effect reference switch

43.201.70AGM DMT 200N-D70-HiSM-IMS

rotary measuring stages with angular measuring system, rotary table with ø 70 mm aperture, with step motor and Hall-effect reference switch

43.201.90AGM DMT 200N-D90-HiSM-IMS

rotary measuring stages with angular measuring system, rotary table with ø 90 mm aperture, with step motor and Hall-effect reference switch

43.201.06BGM DMT 200N-M6-MiSM-IMS

rotary measuring stages with angular measuring system, rotary table with centre bore M6, with step motor and mechanical reference switch

43.201.70BGM DMT 200N-D70-MiSM-IMS

rotary measuring stages with angular measuring system, rotary table with ø 70 mm aperture, with step motor and mechanical reference switch

43.201.90BGM DMT 200N-D90-MiSM-IMS

rotary measuring stages with angular measuring system, rotary table with ø 90 mm aperture, with step motor and mechanical reference switch

90.999.0008 SST.F8

grease for gears, 5 ml, in applicator
