Rotary Measuring Stages DMT 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dmt_65.pdf

Description

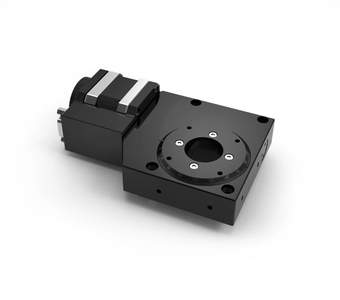

The DMT 65 rotary measuring stages allow unlimited rotation angles at resolutions of less than one angular minute.  They are suitable for horizontal and vertical rotation axes.

The precision ball bearings and the worm gear drive are preloaded, to allow a nearly backlash-free positioning.

Using the slide RT 65-20, the DMT 65 rotary measuring stages are for use with SYS 65. They are available with
different motorizations.

All aluminium parts have a top quality black anodized protective coating.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision angular-contact ball bearings
  • preloaded worm gear
  • rotary plate with aperture or threaded hole
  • Hall-effect reference switch
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Option
- mechanical limit Switches
- vacuum-prepared versions available

Art. Nbr. Type Title
43.065.046C DMT 65-DM4-HSM

rotary measuring stage with M4 center bore in the rotary table, 2-phase step motor and Hall-effect reference switch

43.065.066C DMT 65-DM6-HSM

rotary measuring stage with M6 center bore in the rotary table, 2-phase step motor and Hall-effect reference switch

43.065.256C DMT 65-D25-HSM

rotary measuring stage with ø 25 mm aperture in the rotary table, 2-phase step motor and Hall-effect reference switch

43.065.356C DMT 65-D35-HSM

rotary measuring stage ø 35 mm mount and ø 28 mm aperture in the rotary table, 2-phase step motor and Hall-effect reference switch

43.065.04GF DMT 65-DM4-HiDS

rotary measuring stage with M4 center bore in the rotary table with, DC servo motor with encoder and Hall-effect reference switch

43.065.06GF DMT 65-DM6-HiDS

rotary measuring stage with M6 center bore in the rotary table, DC servo motor with encoder and Hall-effect reference switch

43.065.25GF DMT 65-D25-HiDS

rotary measuring stage with ø 25 mm aperture in the rotary table, DC servo motor with encoder and Hall-effect reference switch

43.065.35GF DMT 65-D35-HiDS

rotary measuring stage with ø 35 mm mount and ø 28 mm aperture in the rotary table, DC servo motor with encoder and Hall-effect reference switch

33.900.0071 MP-DT-AB

mounting plate

34.100.9013 ADP-W-DT65-WV100

angle adapter, 34 mm, with slotted holes

16.021.0020 RT 65-20-R

slide for munting into SYS 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

G

mounts for slack optics - s. product info G

EINS, FASE 40

reduction and fibre adapters - s. product info EINSR FASE 40

STF 15

pin 15 - s. product information STF 15

90.999.0008 SST.F8

grease for gears, 5 ml, in applicator
