Rotary Measuring Stages DMT 200N

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dmt_200n.pdf

Description

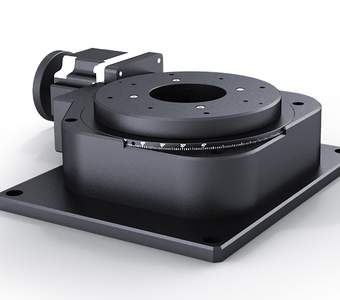

These DMT 200N precision rotary measuring stages allow unlimited rotation angles at resolutions of less than one angular minute. They are suitable for horizontal and vertical rotational axes.

The precision ball bearings and the worm gear drive are preloaded, to allow a nearly backlash-free positioning.

The DMT 200N rotary measuring stages are available with different motorizations and also with an integrated angular measuring system as DMT 200N-IMS.

All aluminium parts have a top quality black anodised protective coating.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision angular contact ball bearings
  • preloaded worm gear
  • rotary table with aperture
  • Hall-effect reference switch
  • 2-phase step motor or DC servo motor with encoder
  • with OWISid

Option
- version with integrated linear measuring system
- vacuum-prepared versions available

Art. Nbr. Type Title
43.201.06AG DMT 200N-M6-HiSM

rotary measuring stages, rotary table with centre bore M6, with step motor and Hall-effect reference switch

43.201.70AG DMT 200N-D70-HiSM

rotary measuring stages, rotary table with ø 70 mm aperture, with step motor and Hall-effect reference switch

43.201.90AG DMT 200N-D90-HiSM

rotary measuring stages, rotary table with ø 90 mm aperture, with step motor and Hall-effect reference switch

43.201.06BG DMT 200N-M6-MiSM

rotary measuring stages, rotary table with centre bore M6, with step motor and mechanical reference switch

43.201.70BG DMT 200N-D70-MiSM

rotary measuring stages, rotary table with ø 70 mm aperture, with step motor and mechanical reference switch

43.201.90BG DMT 200N-D90-MiSM

rotary measuring stages, rotary table with ø 90 mm aperture, with step motor and mechanical reference switch

43.201.06UZ DMT 200N-M6-HiDS

rotary measuring stages, rotary table with centre bore M6, with DC servo motor and Hall-effect reference switch

43.201.70UZ DMT 200N-D70-HiDS

rotary measuring stages, rotary table with ø 70 mm aperture, with DC servo motor and Hall-effect reference switch

43.201.90UZ DMT 200N-D90-HiDS

rotary measuring stages, rotary table with ø 90 mm aperture, with DC servo motor and Hall-effect reference switch

43.201.06VZ DMT 200N-M6-MiDS

rotary measuring stages, rotary table with centre bore M6, with DC servo motor and mechanical reference switch

43.201.70VZ DMT 200N-D70-MiDS

rotary measuring stages, rotary table with ø 70 mm aperture, with DC motor and mechanical reference switch

43.201.90VZ DMT 200N-D90-MiDS

rotary measuring stages, rotary table with ø 90 mm aperture, with DC servo motor and mechanical reference switch

90.999.0008 SST.F8

grease for worm gear, 5 ml, in applicator
