Rotary Measuring Stages DMT 130N

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dmt_130n.pdf

Description

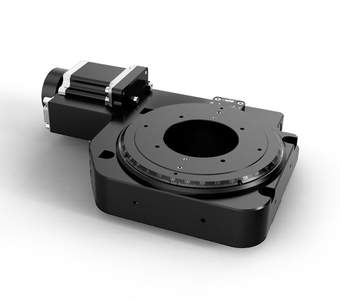

The DMT 130N rotary measuring stages allow unlimited rotation angles at resolutions of less than one angular minute. They are suitable for horizontal and vertical rotation axes.

The precision ball bearings and the worm gear drive are preloaded, to allow a nearly backlash-free positioning.

The DMT 130N rotary measuring stages are available with different motorizations.

All aluminium parts have a top quality black anodized protective coating.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision angular contact ball bearings
  • preloaded worm gear
  • rotary table with aperture
  • Hall-effect reference switch
  • 2-phase step motor or DC servo motor with encoder
  • with OWISid

Option
- mechanical limit Switches
- angular measuring system

- vacuum-prepared versions available

Art. Nbr. Type Title
43.130.56AE DMT 130N-D56-HiSM

rotary measuring stage with ø 56 mm aperture in rotary table,
2-phase step motor and Hall-effect reference switch

43.130.56GJ DMT 130N-D56-HiDS

rotary measuring stage with ø 56 mm aperture in rotary table,
DC servo motor with encoder and Hall-effect reference switch

43.130.9000 ADP-DMT130

adapter plate 130 x 130 x 10 mm

G

mounts for slack optics - s. product info G

EINS, FASE 40

reduction and fibre adapters - s. product info EINSR FASE 40

90.999.0008 SST.F8

grease for gears, 5 ml, in applicator
