Rotary Measuring Stages DMT 100

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dmt_100.pdf

Description

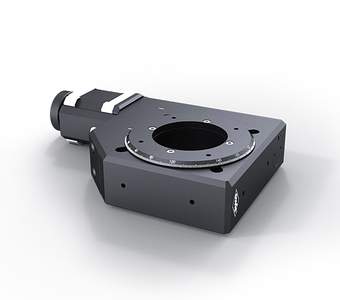

The DMT 100 rotary measuring stages allow unlimited rotation angles at resolutions of less than one angular minute. They are suitable for horizontal and vertical rotation axes.

The precision ball bearings and the worm gear drive are preloaded, to allow a nearly backlash-free positioning.

The DMT 100 rotary measuring stages are available with different motorizations.

All aluminium parts have a top quality black anodized protective coating.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • precision angular contact ball bearings
  • preloaded worm gear
  • rotary plate with aperture
  • Hall-effect reference switch
  • 2-phase step motor or DC servo motor with encoder
  • with OWISid

Option
- mechanical limit switches
- vacuum-prepared versions available

Art. Nbr. Type Title
43.100.536D DMT 100-D53-HSM

rotary measuring stage with ø 53 mm aperture in rotary table, 2-phase step motor and Hall-effect reference switch

43.100.53GJ DMT 100-D53-HiDS

rotary measuring stage with ø 53 mm aperture in rotary table, DC servo motor with encoder and Hall-effect reference switch

34.900.0101 MP-D(M)T100-WV100

mounting plate, 100 x 120 x 12.5 mm for vertical or horizontal mounting

34.100.9014 ADP-W-DT100-WV100

angle adapter for D(M)T 100/WV 100, 50 mm, with slotted holes

90.999.0008 SST.F8

grease for worm gears, 5 ml within applicator
