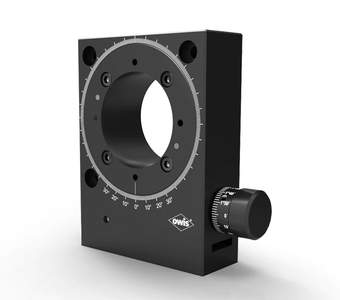

Rotary Adjustment Stages DV 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_dv_65.pdf

Description

The rotary adjustment stage DV 65 allows an unlimited rotation like the DT 65, however not quite backlash-free.

The large aperture of ø 37 mm allows the users to retain large optics using special adapters. Other adapter plates are available for mounting translation or measuring stages on the DV 65.

The worm gear is not preloaded, its drive shaft can be uncoupled for fast and rough adjustment. The adjustment sensitivity is lower than 100 µrad.

The dimensions of the DV 65 are compatible with the system SYS 65.

  • for use with SYS 65
  • for vertical and horizontal use
  • adjustment range > 360°
  • small height
  • good rotation property
  • interesting cost/performance ratio
  • deformation-resistant aluminium, black anodized
  • ways of installing
    - on slide
    - on pin
Art. Nr. Type Title
33.065.3750 DV 65-D37

rotary adjustment stage without retainer, ø 37 mm aperture

16.021.0020 RT 65-20-R

slide SYS 65, 20 mm, with knurled screw

  STF 15

pin 15 - s. product information STF 15
