Prism Stages PR 80

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_pr_80.pdf

Description

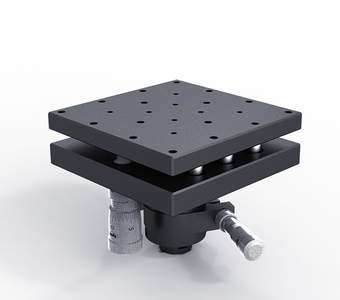

The prism stages PR 80 have a square worktable with 80 mm sides. They are intended to be mounted on supporting pins with M6 external threads.

The stages can be supplied with fine-thread screws or micrometers for adjustment around the three axes.

Optionally, a clamping device is available.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • 3D adjustment; 2 tilting axes and 1 rotation axis
  • adjustment screw below optical axis
  • fine-thread screws or micrometers
  • way of installing
    - on pin

Option
- with clamping device

Art. Nbr. Type Title
26.508.0001 PR 80x80-FGS

prism stages with fine-thread screws

26.508.0002 PR 80x80-MS

prism stages with micrometers

26.606.0001 PR-KLV

clamping device for prisms

STF 15

pin 15 - s. product information STF 15
