Prism Stages PR 60

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_pr_60.pdf

Description

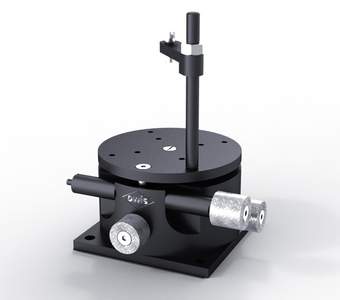

The prism stages PR 60 have a very low table height. Its square base plate can be mounted on measuring and translation stages.

For mounting on optical table remove the base plate and fasten the prism stage on the mounting plate MP 120M with M4 screws via the 34 x 34 mm grid.

The clamping device of the prism stage is scope of delivery.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • compact design
  • 3D adjustment; 2 tilting axes and 1 rotation axis
  • adjustment screws below optical axis
  • fine-thread spindles
  • with clamping device
  • ways of installing
    - on measuring and translation stages with base plate
    - on optical tables with mounting plate MP 120M
Art. Nbr. Type Title
26.606.0000 PR 60-D60-BP

prism stages with base plate 60 x 60 mm and fine-thread spindles

26.606.0001 PR-KLV

clamping device for prisms

31.999.0120 MP 120M

Mounting plates MP 120/170 (120 x 70 x 8 mm) for mounting measuring and translation stages as well as other OWIS components up to 90 or 140 mm in width on optical tables or grid plates with M6 threaded holes. The spacing between the holes is 100 mm.
