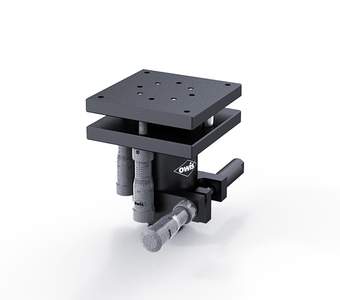

Prism Stages PR 50

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_pr_50.pdf

Description

The prism stages PR 50 have a square worktable with 50 mm sides. They are intended to be mounted on supporting pins with M6 external threads.

The stages can be supplied with fine-thread screws or micrometers for adjustment around the three axes.

Optionally, a clamping device is available.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • 3D adjustment; 2 tilting axes and 1 rotation axis
  • adjustment screw below optical axis
  • fine-thread screws or micrometers
  • way of installing
    - on pin

Option
- with clamping device

Art. Nbr. Type Title
26.505.0001 PR 50x50-FGS

prism stages with fine adjustment screws

26.505.0002 PR 50x50-MS

prism stages with micrometers

26.606.0001 PR-KLV

clamping device for prisms

STF 15

pin 15 - s. product information STF 15
