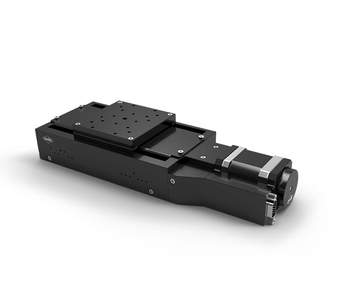

Precision Linear Stages LTM 80M

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ltm_80m.pdf

Description

The economically priced LTM 80M linear stages are designed for industrial application and particularly suitable for continuous operation. The integrated metal covering protects the high-quality guides and the spindle.

In comparison to the other LTM of the 80 series, this version has a wider slide. Therefore it offers a greater area for loads with applied moment of inertia (MOI) on top.

The special guides provide high load capacity. The material combi­nation of spindle and nut ensures low abrasion and long life time.

All aluminium parts have a top quality black anodized protective coating.

  • travel 45 mm, 70 mm, 120 mm, 170 mm und 270 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • with metal covering
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
41.086.04AD LTM 80M-45-HSM

Precision linear stage with metal covering, 45 mm travel,

2-phase step motor and Hall-effect limit switches

41.086.07AD LTM 80M-70-HSM

Precision linear stage with metal covering, 70 mm travel,

2-phase step motor and Hall-effect limit switches

41.086.12AD LTM 80M-120-HSM

Precision linear stage with metal covering, 120 mm travel,

2-phase step motor and Hall-effect limit switches

41.086.17AD LTM 80M-170-HSM

Precision linear stage with metal covering, 170 mm travel,

2-phase step motor and Hall-effect limit switches

41.086.27AD LTM 80M-270-HSM

Precision linear stage with metal covering, 270 mm travel,

2-phase step motor and Hall-effect limit switches

41.086.04BD LTM 80M-45-MSM

Precision linear stage with metal covering, 45 mm travel,

2-phase step motor and mechanical limit switches

41.086.07BD LTM 80M-70-MSM

Precision linear stage with metal covering, 70 mm travel,

2-phase step motor and mechanical limit switches

41.086.12BD LTM 80M-120-MSM

Precision linear stage with metal covering, 120 mm travel,

2-phase step motor and mechanical limit switches

41.086.17BD LTM 80M-170-MSM

Precision linear stage with metal covering, 170 mm travel,

2-phase step motor and mechanical limit switches

41.086.27BD LTM 80M-270-MSM

Precision linear stage with metal covering, 270 mm travel,

2-phase step motor and mechanical limit switches

41.086.04GJ LTM 80M-45-HiDS

Precision linear stage with metal covering, 45 mm travel,

DC motor with encoder and Hall-effect limit switches

41.086.07GJ LTM 80M-70-HiDS

Precision linear stage with metal covering, 70 mm travel,

DC motor with encoder and Hall-effect limit switches

41.086.12GJ LTM 80M-120-HiDS

Precision linear stage with metal covering, 120 mm travel,

DC motor with encoder and Hall-effect limit switches

41.086.17GJ LTM 80M-170-HiDS

Precision linear stage with metal covering, 170 mm travel,

DC motor with encoder and Hall-effect limit switches

41.086.27GJ LTM 80M-270-HiDS

Precision linear stage with metal covering, 270 mm travel,

DC motor with encoder and Hall-effect limit switches

41.086.04WJ LTM 80M-45-MiDS

Precision linear stage with metal covering, 45 mm travel,

DC motor with encoder and mechanical limit switches

41.086.07WJ LTM 80M-70-MiDS

Precision linear stage with metal covering, 70 mm travel,

DC motor with encoder and mechanical limit switches

41.086.12WJ LTM 80M-120-MiDS

Precision linear stage with metal covering, 120 mm travel,

DC motor with encoder and mechanical limit switches

41.086.17WJ LTM 80M-170-MiDS

Precision linear stage with metal covering, 170 mm travel,

DC motor with encoder and mechanical limit switches

41.086.27WJ LTM 80M-270-MiDS

Precision linear stage with metal covering, 270 mm travel,

DC motor with encoder and mechanical limit switches

41.083.0001 MONT-LT(M)80-Z

Z Assembly Bracket for LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0003 MONT-LT(M)80-Z-L

Z assembly bracket for linear stages with 200 mm and 300 mm travel of the LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly

41.083.0014 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, incl. assembly

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
