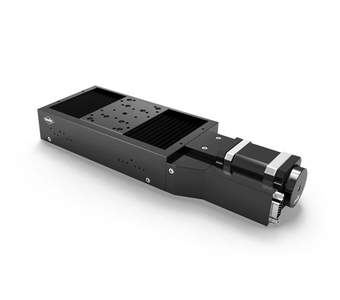

Precision Linear Stages LTM 80F

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ltm_80f.pdf

Description

The economically priced LTM 80F linear stages are particulary suitable for continuous operation and installation in machines. The integrated bellow protects the high-quality guides and spindle.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.

All aluminium parts have a top quality black anodized protective coating.

  • travel 50 mm, 70 mm, 105 mm, 135 mm and 210 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • with bellows
  • 2-phase step motor or DC servo motor with encoder
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
41.084.75AD LTM 80F-75-HSM

precision linear stage with bellows, 50 mm travel, 2-phase step motor and Hall-effect limit switches

41.084.10AD LTM 80F-100-HSM

precision linear stage with bellows, 70 mm travel, 2-phase step motor and Hall-effect limit switches

41.084.15AD LTM 80F-150-HSM

precision linear stage with bellows, 105 mm travel, 2-phase step motor and Hall-effect limit switches

41.084.20AD LTM 80F-200-HSM

precision linear stage with bellows, 135 mm travel, 2-phase step motor and Hall-effect limit switches

41.084.30AD LTM 80F-300-HSM

precision linear stage with bellows, 210 mm travel, 2-phase step motor and Hall-effect limit switches

41.084.75BD LTM 80F-75-MSM

precision linear stage with bellows, 50 mm travel, 2-phase step motor and mechanical limit switches

41.084.10BD LTM 80F-100-MSM

precision linear stage with bellows, 70 mm travel, 2-phase step motor and mechanical limit switches

41.084.15BD LTM 80F-150-MSM

precision linear stage with bellows, 105 mm travel, 2-phase step motor and mechanical limit switches

41.084.20BD LTM 80F-200-MSM

precision linear stage with bellows, 135 mm travel, 2-phase step motor and mechanical limit switches

41.084.30BD LTM 80F-300-MSM

precision linear stage with bellows, 210 mm travel, 2-phase step motor and mechanical limit switches

41.084.75GJ LTM 80F-75-HiDS

precision linear stage with bellows, 50 mm travel, DC motor with encoder and Hall-effect limit switches

41.084.10GJ LTM 80F-100-HiDS

precision linear stage with bellows, 70 mm travel, DC motor with encoder and Hall-effect limit switches

41.084.15GJ LTM 80F-150-HiDS

precision linear stage with bellows, 105 mm travel, DC motor with encoder and Hall-effect limit switches

41.084.20GJ LTM 80F-200-HiDS

precision linear stage with bellows, 135 mm travel, DC motor with encoder and Hall-effect limit switches

41.084.30GJ LTM 80F-300-HiDS

precision linear stage with bellows, 210 mm travel, DC motor with encoder and Hall-effect limit switches

41.084.75WJ LTM 80F-75-MiDS

precision linear stage with bellows, 50 mm travel, DC motor with encoder and mechanical limit switches

41.084.10WJ LTM 80F-100-MiDS

precision linear stage with bellows, 70 mm travel, DC motor with encoder and mechanical limit switches

41.084.15WJ LTM 80F-150-MiDS

precision linear stage with bellows, 105 mm travel, DC motor with encoder and mechanical limit switches

41.084.20WJ LTM 80F-200-MiDS

precision linear stage with bellows, 135 mm travel, DC motor with encoder and mechanical limit switches

41.084.30WJ LTM 80F-300-MiDS

precision linear stage with bellows, 210 mm travel, DC motor with encoder and mechanical limit switches

41.083.0001 MONT-LT(M)80-Z

Z Assembly Bracket for LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0003 MONT-LT(M)80-Z-L

Z assembly bracket for linear stages with 200 mm and 300 mm travel of the LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly

41.083.0014 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, incl. assembly

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
