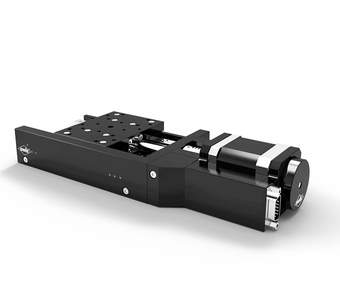

Precision Linear Stages LTM 80

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ltm_80.pdf

Description

The economically priced LTM 80 linear stages are particulary suitable for continuous operation and installation in machines.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.

All aluminium parts have a top quality black anodized protective coating.

  • travel 70 mm, 95 mm, 145 mm, 195 mm and 295 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC servo motor with encoder
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
41.083.756D LTM 80-75-HSM

precision linear stage with 70 mm travel, 2-phase step motor and Hall-effect limit switches

41.083.106D LTM 80-100-HSM

precision linear stage with 95 mm travel, 2-phase step motor and Hall-effect limit switches

41.083.156D LTM 80-150-HSM

precision linear stage with 145 mm travel, 2-phase step motor and Hall-effect limit switches

41.083.206D LTM 80-200-HSM

precision linear stage with 195 mm travel, 2-phase step motor and Hall-effect limit switches

41.083.306D LTM 80-300-HSM

precision linear stage with 295 mm travel, 2-phase step motor and Hall-effect limit switches

41.083.756D.ESM LTM 80-75-MSM

precision linear stage with 70 mm travel, 2-phase step motor and mechanical limit switches

41.083.106D.ESM LTM 80-100-MSM

precision linear stage with 95 mm travel, 2-phase step motor and mechanical limit switches

41.083.156D.ESM LTM 80-150-MSM

precision linear stage with 145 mm travel, 2-phase step motor and mechanical limit switches

41.083.206D.ESM LTM 80-200-MSM

precision linear stage with 195 mm travel, 2-phase step motor and mechanical limit switches

41.083.306D.ESM LTM 80-300-MSM

precision linear stage with 295 mm travel, 2-phase step motor and mechanical limit switches

41.083.75GJ LTM 80-75-HiDS

precision linear stage with 70 mm travel, DC motor with encoder and Hall-effect limit switches

41.083.10GJ LTM 80-100-HiDS

precision linear stage with 95 mm travel, DC motor with encoder and Hall-effect limit switches

41.083.15GJ LTM 80-150-HiDS

precision linear stage with 145 mm travel, DC motor with encoder and Hall-effect limit switches

41.083.20GJ LTM 80-200-HiDS

precision linear stage with 195 mm travel, DC motor with encoder and Hall-effect limit switches

41.083.30GJ LTM 80-300-HiDS

precision linear stage with 295 mm travel, DC motor with encoder and Hall-effect limit switches

41.083.75WJ LTM 80-75-MiDS

precision linear stage with 70 mm travel, DC motor with encoder and mechanical limit switches

41.083.10WJ LTM 80-100-MiDS

precision linear stage with 95 mm travel, DC motor with encoder and mechanical limit switches

41.083.15WJ LTM 80-150-MiDS

precision linear stage with 145 mm travel, DC motor with encoder and mechanical limit switches

41.083.20WJ LTM 80-200-MiDS

precision linear stage with 195 mm travel, DC motor with encoder and mechanical limit switches

41.083.30WJ LTM 80-300-MiDS

precision linear stage with 295 mm travel, DC motor with encoder and mechanical limit switches

41.083.0001 MONT-LT(M)80-Z

Z Assembly Bracket for LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0003 MONT-LT(M)80-Z-L

Z assembly bracket for linear stages with 200 mm and 300 mm travel of the LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly

41.083.0014 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, incl. assembly

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
