Precision Linear Stages LTM 60M
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_ltm_60m.pdf
Description

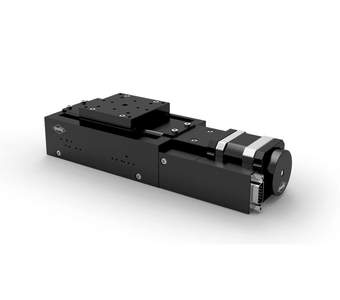

The economically priced LTM 60M linear stages are designed for industrial application and particulary suitable for continuous operation. The integrated metal covering protects the high-quality guides and the spindle.
The special guides provide high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.
All aluminium parts have a top quality black anodized protective coating.
- travel 20 mm, 45 mm, 65 mm, 90 mm und 140 mm
- designed for industrial application
- deformation-resistant aluminium
- reflection-poor, black anodized
- ground fine-thread spindle with low backlash
- carriage with ground and stainless recirculating ball bearing guides
- Hall-effect or mechanical limit switches
- with metal covering
- 2-phase step motor or DC motor with encoder
- with OWISid
Option
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 41.066.20AC | LTM 60M-20-HSM | precision linear stage with step motor and Hall-effect limit switches, |
| 41.066.45AC | LTM 60M-45-HSM | precision linear stage with step motor and Hall-effect limit switches, |
| 41.066.65AC | LTM 60M-65-HSM | precision linear stage with step motor and Hall-effect limit switches, |
| 41.066.90AC | LTM 60M-90-HSM | precision linear stage with step motor and Hall-effect limit switches, |
| 41.066.14AC | LTM 60M-140-HSM | precision linear stage with step motor and Hall-effect limit switches, |
| 41.066.20BC | LTM 60M-20-MSM |
precision linear stage with step motor and mechanical limit switches, 20 mm travel |
| 41.066.45BC | LTM 60M-45-MSM | precision linear stage with step motor and mechanical limit switches, |
| 41.066.65BC | LTM 60M-65-MSM | precision linear stage with step motor and mechanical limit switches, |
| 41.066.90BC | LTM 60M-90-MSM | precision linear stage with step motor and mechanical limit switches, |
| 41.066.14BC | LTM 60M-140-MSM | precision linear stage with step motor and mechanical limit switches, 140 mm travel |
| 41.066.20GE | LTM 60M-20-HiDS | precision linear stage with DC servo motor and Hall-effect limit switches, 20 mm travel |
| 41.066.45GE | LTM 60M-45-HiDS | precision linear stage with DC servo motor and Hall-effect limit switches, 45 mm travel |
| 41.066.65GE | LTM 60M-65-HiDS | precision linear stage with DC servo motor and Hall-effect limit switches, 65 mm travel |
| 41.066.90GE | LTM 60M-90-HiDS | precision linear stage with DC servo motor and Hall-effect limit switches, 90 mm travel |
| 41.066.14GE | LTM 60M-140-HiDS | precision linear stage with DC servo motor and Hall-effect limit switches, 140 mm travel |
| 41.066.20WE | LTM 60M-20-MiDS | precision linear stage with DC servo motor and mechanischen limit switches, 20 mm travel |
| 41.066.45WE | LTM 60M-45-MiDS | precision linear stage with DC servo motor and mechanical limit |
| 41.066.65WE | LTM 60M-65-MiDS | precision linear stage with DC servo motor and mechanical limit switches, 65 mm travel |
| 41.066.90WE | LTM 60M-90-MiDS | precision linear stage with DC servo motor and mechanical limit switches, 90 mm travel |
| 41.066.14WE | LTM 60M-140-MiDS | precision linear stage with DC servo motor and mechanical limit switches, 140 mm travel |
| 41.063.0001 | MONT-LT(M) 60-Z | Z assembly bracket, for LT 60, LTM 60, LTM 60P, F and M, LIMES 60 and LIMES 64, without assembly |
| 41.063.0005 | MONT-LT(M) 60-Z-K | Z assembly bracket short, for LT 60, LTM 60, LTM 60P, F and M, up to 70 mm travel, without assembly |
| 41.083.0004 | MONT-LT(M)-XY |
XY assembly kit for LT, LTM and LIMES, without assembly, not for P version |
| 41.083.0014 | MZB-LT(M)-XY-MM |
XY assembly kit for LT, LTM and LIMES, with assembly, not for P version |
| 90.999.0011 | SST.F11 | grease for spindle, 5 ml in applicator |
| 90.999.0002 | SST.F2 | grease for guides, 5 ml, in applicator |
