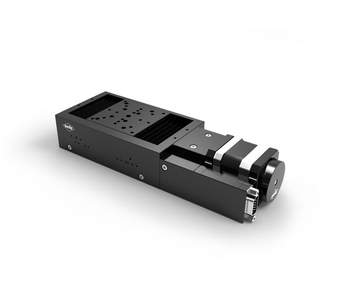

Precision Linear Stages LTM 60F

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ltm_60f.pdf

Description

The economically priced LTM 60F linear stages are particulary suitable for continuous operation and installation in machines. The integreated bellow protects the high-quality guides and spindle.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.

All aluminium parts have a top quality black anodized protective coating.

  • travel 20 mm, 40 mm, 50 mm, 70 mm and 105 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • with bellows
  • 2-phase step motor or DC motor with encoderwith
  • OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
41.064.25AC LTM 60F-25 HSM

precision linear stage with bellows, 20 mm travel, 2-phase step motor and Hall-effect limit switches

41.064.50AC LTM 60F-50 HSM

precision linear stage with bellows, 40 mm travel, 2-phase step motor and Hall-effect limit switches

41.064.75AC LTM 60F-75 HSM

precision linear stage with bellows, 50 mm travel, 2-phase step motor and Hall-effect limit switches

41.064.10AC LTM 60F-100 HSM

precision linear stage with bellows, 70 mm travel, 2-phase step motor and Hall-effect limit switches

41.064.15AC LTM 60F-150 HSM

precision linear stage with bellows, 105 mm travel, 2-phase step motor and Hall-effect limit switches

41.064.25BC LTM 60F-25-MSM

precision linear stage with bellows, 20 mm travel, 2-phase step motor and mechanical limit switches

41.064.50BC LTM 60F-50-MSM

precision linear stage with bellows, 40 mm travel, 2-phase step motor and mechanical limit switches

41.064.75BC LTM 60F-75-MSM

precision linear stage with bellows, 50 mm travel, 2-phase step motor and mechanical limit switches

41.064.10BC LTM 60F-100-MSM

precision linear stage with bellows, 70 mm travel, 2-phase step motor and mechanical limit switches

41.064.15BC LTM 60F-150-MSM

precision linear stage with bellows, 105 mm travel, 2-phase step motor and mechanical limit switches

41.064.25GE LTM 60F-25-HiDS

precision linear stage with bellows, 20 mm travel, DC motor

with encoder and Hall-effect limit switches

41.064.50GE LTM 60F-50-HiDS

precision linear stage with bellows, 40 mm travel, DC motor

with encoder and Hall-effect limit switches

41.064.75GE LTM 60F-75-HiDS

precision linear stage with bellows, 50 mm travel, DC motor with encoder and Hall-effect limit switches

41.064.10GE LTM 60F-100-HiDS

precision linear stage with bellows, 70 mm travel, DC motor

with encoder and Hall-effect limit switches

41.064.15GE LTM 60F-150-HiDS

precision linear stage with bellows, 105 mm travel, DC motor

with encoder and Hall-effect limit switches

41.064.25WE LTM 60F-25-MiDS

precision linear stage with bellows, 20 mm travel, DC motor with encoder and mechanical limit switches

41.064.50WE LTM 60F-50-MiDS

precision linear stage with bellows, 40 mm travel, DC motor with encoder and mechanical limit switches

41.064.75WE LTM 60F-75-MiDS

precision linear stage with bellows, 50 mm travel, DC motor with encoder and mechanical limit switches

41.064.10WE LTM 60F-100-MiDS

precision linear stage with bellows, 70 mm travel, DC motor with encoder and mechanical limit switches

41.064.15WE LTM 60F-150-MiDS

precision linear stage with bellows, 105 mm travel, DC motor with encoder and mechanical limit switches

41.063.0001 MONT-LT(M) 60-Z

Z assembly bracket for LT 60, LTM 60, LTM 60P, F and M, LIMES 60 and LIMES 64, without assembly

41.063.0005 MONT-LT(M) 60-Z-K

Z assembly bracket short, for LT 60, LTM 60, LTM 60P, F and M, up to 70 mm travel, without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly,
not for P version

41.083.0014 MZB-LT(M)-XY-MM

XY assembly kit for LT, LTM and LIMES, with assembly,
not for P version

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
