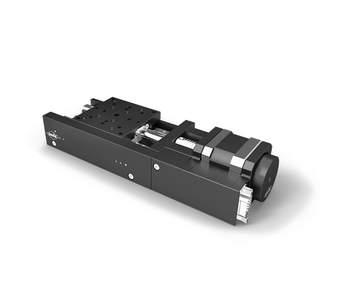

Precision Linear Stages LTM 60

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ltm_60.pdf

Description

The economically priced LTM 60 linear stages are particulary suitable for continuous operation and installation in machines.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.

All aluminium parts have a top quality black anodized protective coating.

  • travel 25 mm, 50 mm, 70 mm, 95 mm and 145 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Option
- vacuum-prepared versions availabl

Art. Nbr. Type Title
41.063.25AC LTM 60-25 HSM

precision linear stage with 25 mm travel, 2-phase step motor and Hall-effect limit switches

41.063.50AC LTM 60-50 HSM

precision linear stage with 50 mm travel, 2-phase step motor and Hall-effect limit switches

41.063.75AC LTM 60-75 HSM

precision linear stage with 70 mm travel, 2-phase step motor and Hall-effect limit switches

41.063.10AC LTM 60-100 HSM

precision linear stage with 95 mm travel, 2-phase step motor and Hall-effect limit switches

41.063.15AC LTM 60-150 HSM

precision linear stage with 145 mm travel, 2-phase step motor and Hall-effect limit switches

41.063.25BC LTM 60-25 MSM

precision linear stage with 25 mm travel, 2-phase step motor and mechanical limit switches

41.063.50BC LTM 60-50 MSM

precision linear stage with 50 mm travel, 2-phase step motor and mechanical limit switches

41.063.75BC LTM 60-75 MSM

precision linear stage with 70 mm travel, 2-phase step motor and mechanical limit switches

41.063.10BC LTM 60-100 MSM

precision linear stage with 95 mm travel, 2-phase step motor and mechanical limit switches

41.063.15BC LTM 60-150 MSM

precision linear stage with 145 mm travel, 2-phase step motor and mechanical limit switches

41.063.25GE LTM 60-25 HiDS

precision linear stage with 25 mm travel, DC motor with encoder and Hall-effect limit switches

41.063.50GE LTM 60-50 HiDS

precision linear stage with 50 mm travel, DC motor with encoder and Hall-effect limit switches

41.063.75GE LTM 60-75 HiDS

precision linear stage with 70 mm travel, DC motor with encoder and Hall-effect limit switches

41.063.10GE LTM 60-100 HiDS

precision linear stage with 95 mm travel, DC motor with encoder and Hall-effect limit switches

41.063.15GE LTM 60-150 HiDS

precision linear stage with 145 mm travel, DC motor with encoder and Hall-effect limit switches

41.063.25WE LTM 60-25-MiDS

precision linear stage with 25 mm travel, DC motor with encoder and mechanical limit switches

41.063.50WE LTM 60-50-MiDS

precision linear stage with 50 mm travel, DC motor with encoder and mechanical limit switches

41.063.75WE LTM 60-75-MiDS

precision linear stage with 70 mm travel, DC motor with encoder and mechanical limit switches

41.063.10WE LTM 60-100-MiDS

precision linear stage with 95 mm travel, DC motor with encoder and mechanical limit switches

41.063.15WE LTM 60-150-MiDS

precision linear stage with 145 mm travel, DC motor with encoder and mechanical limit switches

41.063.0001 MONT-LT(M) 60-Z

Z assembly bracket for LT 60, LTM 60P, F and M, LIMES 60 and LIMES 64, without assembly

41.063.0005 MONT-LT(M) 60-Z-K

Z assembly bracket short, for LT 60, LTM 60, LTM 60P, F and M up to 70 mm travel, without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly,

not for P version

41.083.0014 MZB-LT(M)-XY-MM

XY assembly kit for LT, LTM and LIMES, incl. assembly,

not for P version

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
