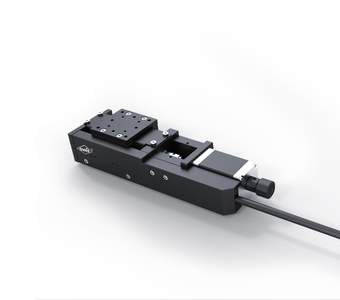

Precision Linear Stages LTM 45M

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ltm_45m.pdf

Description

The economically priced LTM 45M linear stages belong to the slimest of the LTM series and are additionally equipped with a metal covering. They are particulary suitable for continuous operation and installation in machines.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.

All aluminium parts have a top-quality black anodized protective coating.

  • travel 25 mm, 40 mm, 65 mm, 85 mm and 110 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low-backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
41.046.25AN LTM 45M-25-HiSM

precision linear stage, 25 mm travel, with step motor and Hall-effect limit switches

41.046.40AN LTM 45M-40-HiSM

precision linear stage, 40 mm travel, with step motor and Hall-effect limit switches

41.046.65AN LTM 45M-65-HiSM

precision linear stage, 65 mm travel, with step motor and Hall-effect limit switches

41.046.85AN LTM 45M-85-HiSM

precision linear stage, 85 mm travel, with step motor and Hall-effect limit switches

41.046.11AN LTM 45M-110-HiSM

precision linear stage, 110 mm travel, with step motor and Hall-effect limit switches

41.046.25BN LTM 45M-25-MiSM

precision linear stage, 25 mm travel, with step motor and mechanical limit switches

41.046.40BN LTM 45M-40-MiSM

precision linear stage, 40 mm travel, with step motor and mechanical limit switches

41.046.65BN LTM 45M-65-MiSM

precision linear stage, 65 mm travel, with step motor and mechanical limit switches

41.046.85BN LTM 45M-85-MiSM

precision linear stage, 85 mm travel, with step motor and mechanical limit switches

41.046.11BN LTM 45M-110-MiSM

precision linear stage, 110 mm travel, with step motor and mechanical limit switches

41.046.25GE TM 45M-25-HiDS

precision linear stage, 25 mm travel, with DC servo motor and Hall-effect limit switches

41.046.40GE LTM 45M-40-HiDS

precision linear stage, 40 mm travel, with DC servo motor and Hall-effect limit switches

41.046.65GE LTM 45M-65-HiDS

precision linear stage, 65 mm travel, with DC servo motor and Hall-effect limit switches

41.046.85GE LTM 45M-85-HiDS

precision linear stage, 85 mm travel, with DC servo motor and Hall-effect limit switches

41.046.11GE LTM 45M-110-HiDS

precision linear stage, 110 mm travel, with DC servo motor and Hall-effect limit switches

41.046.25WE LTM 45M-25-MiDS

precision linear stage, 25 mm travel, with DC servo motor and mechanical limit switches

41.046.40WE LTM 45M-40-MiDS

ecision linear stage, 40 mm travel, with DC servo motor and mechanical limit switches

41.046.65WE LTM 45M-65-MiDS

precision linear stage, 65 mm travel, with DC servo motor and mechanical limit switches

41.046.85WE LTM 45M-85-MiDS

precision linear stage, 85 mm travel, with DC servo motor and mechanical limit switches

41.046.11WE LTM 45M-110-MiDS

precision linear stage, 110 mm travel, with DC servo motor and mechanical limit switches

41.045.0001 MONT-LT(M) 45-Z

Z assembly bracket for linear stages of the VT 45, LT 45, LTM 45, LTM 45M as well as LIMES 44 series

41.045.0004 MONT-LT(M) 45-XY

XY assembly kit for LT 45, LTM 45, LTM 45M

and LIMES 44, without assembly

41.045.0014 MONT-LT(M) 45-XY-MM

XY assembly kit for LT 45, LTM 45, LTM 45M

and LIMES 44, with assembly

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
