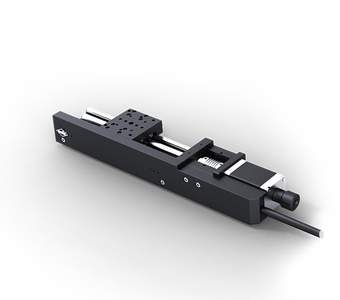

Precision Linear Stages LTM 45
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_ltm_45.pdf
Description
The economically priced linear stages LTM 45 are the slimest of the LTM series and particulary suitable for continuous operation and installation in machines.
The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.
All aluminium parts have a top quality black anodized protective coating.
- travel 25 mm, 40 mm, 65 mm, 85 mm and 110 mm
- designed for industrial application
- deformation-resistant aluminium
- reflection-poor, black anodized
- ground fine-thread spindle with low-backlash
- carriage with ground and stainless recirculating ball bearing guides
- Hall-effect or mechanical limit switches
- 2-phase step motor or DC motor with encoder
- with OWISid
Option
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 41.045.25AN | LTM 45-25-HiSM | precision linear stage, 25 mm travel, with step motor and Hall-effect limit switches |
| 41.045.40AN | LTM 45-40-HiSM | precision linear stage, 40 mm travel, with step motor and Hall-effect limit switches |
| 41.045.65AN | LTM 45-65-HiSM | precision linear stage, 65 mm travel, with step motor and Hall-effect limit switches |
| 41.045.85AN | LTM 45-85-HiSM | precision linear stage, 85 mm travel, with step motor and Hall-effect limit switches |
| 41.045.11AN | LTM 45-110-HiSM | precision linear stage, 110 mm travel, with step motor and Hall-effect limit switches |
| 41.045.25BN | LTM 45-25-MiSM | precision linear stage, 25 mm travel, with step motor and mechanical limit switches |
| 41.045.40BN | LTM 45-40-MiSM | precision linear stage, 40 mm travel, with step motor and mechanical limit switches |
| 41.045.65BN | LTM 45-65-MiSM | precision linear stage, 65 mm travel, with step motor and mechanical limit switches |
| 41.045.85BN | LTM 45-85-MiSM | precision linear stage, 85 mm travel, with step motor and mechanical limit switches |
| 41.045.11BN | LTM 45-110-MiSM | precision linear stage, 110 mm travel, with step motor and mechanical limit switches |
| 41.045.25GE | LTM 45-25-HiDS | precision linear stage, 25 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.045.40GE | LTM 45-40-HiDS | precison linear stage, 40 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.045.65GE | LTM 45-65-HiDS | precison linear stage, 65 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.045.85GE | LTM 45-85-HiDS | precison linear stage, 85 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.045.11GE | LTM 45-110-HiDS | precison linear stage, 110 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.045.25WE | LTM 45-25-MiDS | precison linear stage, 25 mm travel, with DC servo motor and mechanical limit switches |
| 41.045.40WE | LTM 45-40-MiDS | precison linear stage, 40 mm travel, with DC servo motor and mechanical limit switches |
| 41.045.65WE | LTM 45-65-MiDS | precison linear stage, 65 mm travel, with DC servo motor and mechanical limit switches |
| 41.045.85WE | LTM 45-85-MiDS | precison linear stage, 85 mm travel, with DC servo motor and mechanical limit switches |
| 41.045.11WE | LTM 45-110-MiDS | precison linear stage, 110 mm travel, with DC servo motor and mechanical limit switches |
| 41.045.0001 | MONT-LT(M) 45-Z | Z assembly bracket for linear stages of the VT 45, LT 45, LTM 45, LTM 45M as well as LIMES 44 series |
| 41.045.0004 | MONT-LT(M) 45-XY |
XY assembly kit for LT 45, LTM 45, LTM 45M and LIMES 44, without assembly |
| 41.045.0014 | MONT-LT(M) 45-XY-MM |
XY assembly kit for LT 45, LTM 45, LTM 45M and LIMES 44, with assembly |
| 90.999.0002 | SST.F2 | grease for guides, 5 ml, in applicator |
