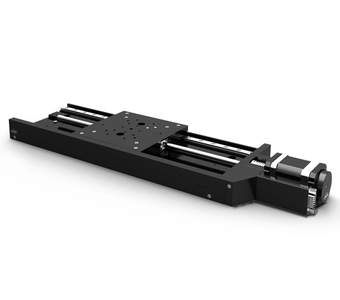

Precision Linear Stages LTM 120

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ltm_120.pdf

Description

The economically priced LTM 120 linear stages are particularly suitable for continuous operation and installation in machines.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and long life time.

All aluminium parts have a top quality black anodized protective coating.

  • travel 85 mm, 135 mm, 235 mm, 295 mm and 395 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC servo motor with encoder
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
41.123.09AD LTM 120-90-HSM

precision linear stage with 85 mm travel, 2-phase step motor and Hall-effect limit switches

41.123.14AD LTM 120-140-HSM

precision linear stage with 135 mm travel, 2-phase step motor and Hall-effect limit switches

41.123.24AD LTM 120-240-HSM

precision linear stage with 235 mm travel, 2-phase step motor and Hall-effect limit switches

41.123.30AD LTM 120-300-HSM

precision linear stage with 295 mm travel, 2-phase step motor and Hall-effect limit switches

41.123.40AD LTM 120-400-HSM

precision linear stage with 395 mm travel, 2-phase step motor and Hall-effect limit switches

41.123.09BD LTM 120-90-MSM

precision linear stage with 85 mm travel, 2-phase step motor and mechanical limit switches

41.123.14BD LTM 120-140-MSM

precision linear stage with 135 mm travel, 2-phase step motor and mechanical limit switches

41.123.24BD LTM 120-240-MSM

precision linear stage with 235 mm travel, 2-phase step motor and mechanical limit switches

41.123.30BD LTM 120-300-MSM

precision linear stage with 295 mm travel, 2-phase step motor and mechanical limit switches

41.123.40BD LTM 120-400-MSM

precision linear stage with 395 mm travel, 2-phase step motor and mechanical limit switches

41.123.09GJ LTM 120-90-HiDS

precision linear stage with 85 mm travel, DC motor with encoder and Hall-effect limit switches

41.123.14GJ LTM 120-140-HiDS

precision linear stage with 135 mm travel, DC motor with encoder and Hall-effect limit switches

41.123.24GJ LTM 120-240-HiDS

precision linear stage with 235 mm travel, DC motor with encoder and Hall-effect limit switches

41.123.30GJ LTM 120-300-HiDS

precision linear stage with 295 mm travel, DC motor with encoder and Hall-effect limit switches

41.123.40GJ LTM 120-400-HiDS

precision linear stage with 395 mm travel, DC motor with encoder and Hall-effect limit switches

41.123.09WJ LTM 120-90-MiDS

precision linear stage with 85 mm travel, DC motor with encoder and mechanical limit switches

41.123.14WJ LTM 120-140-MiDS

precision linear stage with 135 mm travel, DC motor with encoder and mechanical limit switches

41.123.24WJ LTM 120-240-MiDS

precision linear stage with 235 mm travel, DC motor with encoder and mechanical limit switches

41.123.30WJ LTM 120-300-MiDS

precision linear stage with 295 mm travel, DC motor with encoder and mechanical limit switches

41.123.40WJ LTM 120-400-MiDS

precision linear stage with 395 mm travel, DC motor with encoder and mechanical limit switches

41.123.0001 MONT-LT(M) 120-Z

Z assembly bracket, for LT 120, LTM 120, LTM 120F and M, LIMES 122, LIMES 124
and NHL 124, without assembly

41.N29.0005 MONT-L120-Z-K

Z Assembly Bracket Short for LT(M) 120 (F/M/P), LIMES 124N(-IMS), without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly

41.083.0014 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, incl. assembly

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
