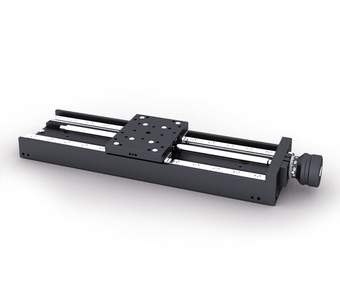

Precision Linear Stages LT 80

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lt_80.pdf

Description

The economically priced linear stages of the series LT 80 are the appropriate choice for both R&D and industrial applications.

The special guidance provides a virtually slip-stick free motion as well as a high load capacity. The material combination of spindle and nut ensures low wear and tear as well as long life time.

It is possible to sensitively adjust the breaking force of the clamping element up to the complete fixing of the fine-thread spindle without displacing the spindle.

All aluminium parts have a top-quality black anodized protective coating.

  • travel 75 mm, 100 mm, 150 mm, 200 mm or 300 mm
  • designed for industrial applications
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • fixing device for the slide
  • XY, XZ or XYZ mounting possible

Option
- non-magnetic and vacuum-prepared versions available

Art. Nbr. Type Title
31.083.7531 LT 80-75

precision linear stage, 75 mm travel

31.083.1031 LT 80-100

precision linear stage, 100 mm travel

31.083.1531 LT 80-150

precision linear stage, 150 mm travel

31.083.2031 LT 80-200

precision linear stage, 200 mm travel

31.083.3031 LT 80-300

precision linear stage, 300 mm travel

41.083.0001 MONT-LT(M)80-Z

Z Assembly Bracket for LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0003 MONT-LT(M)80-Z-L

Z assembly bracket for linear stages with 200 mm and 300 mm travel of the LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembling, not for

P version

41.083.0014 MZB-LT(M)-XY-MM

XY assembly kit for LT, LTM and LIMES, incl. assembling, not for

P version
