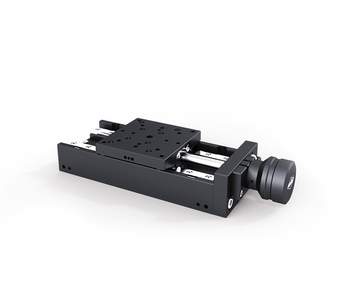

Precision Linear Stages LT 60

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lt_60.pdf

Description

The economically priced linear stages of the series LT 60 are the appropriate choice for both R&D and industrial applications.
The special guidance provides a virtually slip-stick free motion as well as a high load capacity. The material combination of spindle and nut ensures low wear and tear as well as long life time.
It is possible to sensitively adjust the breaking force of the clamping element up to the complete fixing of the fine thread spindle without displacing the spindle.
All aluminium parts have a top-quality black anodized protective coating.

  • travel 25 mm, 50 mm, 75 mm, 100 mm or 150 mm
  • designed for industrial applications
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • fixing device for the slide
  • XY, XZ or XYZ assembly possible

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
31.064.2531 LT 60-25

precision linear stage, 25 mm travel

31.064.5031 LT 60-50

precision linear stage, 50 mm travel

31.064.7531 LT 60-75

precision linear stage, 75 mm travel

31.064.1031 LT 60-100

precision linear stage, 100 mm travel

31.064.1531 LT 60-150

precision linear stage, 150 mm travel

41.063.0001 MONT-LT(M) 60-Z

Z assembly kit for the LT 60, LTM 60, LTM 60P, F and M, LIMES 60 and LIMES 80 linear stages

41.063.0005 MONT-LT(M) 60-Z-K

Z assembly kit short, for LT 60, LTM 60, LTM 60P, F and M, LIMES 60 and LIMES 80 inear stages up to 70 mm travel

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly, not for

P version

41.083.0014 MZB-LT(M)-XY-MM

XY assembly kit for LT, LTM and LIMES, incl. assembly, not for

P version
