Precision Linear Stages LT 45

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lt_45.pdf

Description

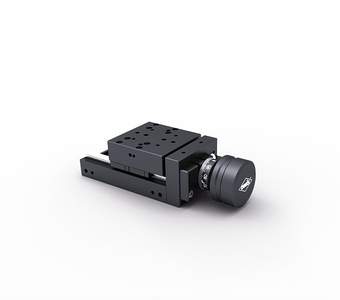

The LT 45 precision linear stages are the slimest of the LT series. They are the appropriate choice for both industrial applications and R&D.

In face of their low width the special guidance provides a high load capacity as well as a virtually slip-stick free motion for the low available space.

It is possible to sensitively adjust the breaking force of the clamping element up to the complete fixing of the fine-thread spindle without displacing the spindle.

All aluminium parts have a top-quality black anodized protective coating.

  • travel 25 mm, 40 mm, 65 mm, 85 mm or 110 mm
  • designed for industrial applications
  • deformation-resistant aluminium
  • reflection poor, black anodized
  • fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • fixing device for the slide
  • XY, XZ or XYZ assembly possible

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
31.045.2531 LT 45-25

precision linear stage, 25 mm travel

31.045.4031 LT 45-40

precision linear stage, 40 mm travel

31.045.6531 LT 45-65

precision linear stage, 65 mm travel

31.045.8531 LT 45-85

precision linear stage, 85 mm travel

31.045.1131 LT 45-110

precision linear stage, 110 mm travel

31.999.0120 MP 120M

Mounting plates MP 120/170 (120 x 70 x 8 mm) for mounting measuring and translation stages as well as other OWIS components up to 90 or 140 mm in width on optical tables or grid plates with M6 threaded holes. The spacing between the holes is 100 mm.

41.045.0001 MONT-LT(M) 45-Z

Z assembly bracket for linear stages of the VT 45, LT 45, LTM 45, LTM 45M as well as LIMES 44 series

41.045.0004 MONT-LT(M) 45-XY

XY assembly kit for LT 45, LTM 45, LTM 45M

and LIMES 44, without assembly

41.045.0014 MONT-LT(M) 45-XY-MM

XY assembly kit for LT 45, LTM 45, LTM 45M

and LIMES 44, with assembly
