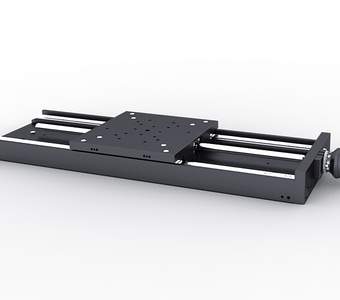

Precision Linear Stages LT 120

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lt_120.pdf

Description

The economically priced linear stages of the series LT 120 are the appropriate choice for both R&D and industrial applications.

The special guidance provides a virtually slip-stick free motion as well as a high load capacity. The material combination of spindle and nut ensures low wear and tear as well as long life time.

It is possible to sensitively adjust the breaking force of the clamping element up to the complete fixing of the fine-thread spindle without displacing the spindle.

All aluminium parts have a top-quality black anodized protective coating.

  • travel 90 mm, 140 mm, 240 mm, 300 mm or 400 mm
  • designed for industrial applications
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • fixing device for the slide
  • XY, XZ or XYZ-mounting possible

Option
- non-magnetic and vacuum-prepared versions available

Art. Nbr. Type Title
31.121.0931 LT 120-90

precision linear stage, 90 mm travel

31.121.1431 LT 120-140

precision linear stage, 140 mm travel

31.121.2431 LT 120-240

precision linear stage, 240 mm travel

31.121.3031 LT 120-300

precision linear stage, 300 mm travel

31.121.4031 LT 120-400

precision linear stage, 400 mm travel

41.123.0001 MONT-LT(M) 120-Z

Z assembly bracket, for LT 120, LTM 120, LTM 120F and M, LIMES 122, LIMES 124
and NHL 124, without assembly

41.N29.0005 MONT-L120-Z-K

Z Assembly Bracket Short for LT(M) 120 (F/M/P), LIMES 124N(-IMS), without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly, not for

P version

41.083.0014 MZB-LT(M)-XY-MM

XY assembly kit for LT, LTM and LIMES, incl. assembly, not for

P version
