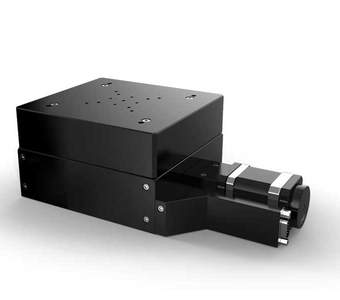

Precision Elevator Stages HTM 150

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_htm_150.pdf

Description

The HTM 150 elevator stages provide precision positioning also for heavy loads. To achieve high accuracy, the HTM 150 are equipped with components made with high precision. Optionally an directly integrable measurement system returns accurate position feedback with highest resolution.

The spindle driven guiding system allow further mountings in the direction using horizontal travel range, but also upside down applications. The used miniature precision guides allow high loads. Travel ranges of 30 mm can be realized with high resolutions. Depending on the requirements of the application, stepper motor or DC servo motor can be chosen. For protection of the mechanics, Hall-effect or mechanical limit switches are integrated.

The top quality black anodized protective coating of the aluminum parts prevents reflections or stray light almost completely.

  • travel up to 30 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low-backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
42.153.30AD HTM 150-30-HiSM

precision elevator stages, 30 mm travel, with step motor and Hall-effect limit switches

42.153.30BD HTM 150-30-MiSM

/precision elevator stages, 30 mm travel, with step motor and mechanical limit switches

42.153.30GJ HTM 150-30-HiDS

precision elevator stages, 30 mm travel, with DC servo motor and Hall-effect limit switches

42.153.30WJ HTM 150-30-MiDS

precision elevator stages, 30 mm travel, with DC servo motor and mechanical limit switches

42.153.0000 MP-HTM150

mounting plate 162 x 162 x 10 mm

90.999.0011 SST.F11

grease for spindles, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml in applicator
