Precision Elevator Stages HT

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ht.pdf

Description

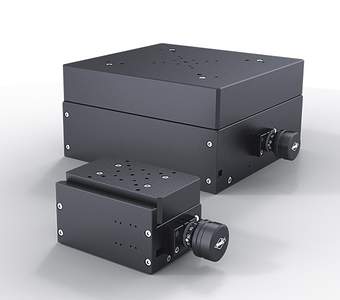

The elevator stages HT enable, beside the standard horizontal setup, an upside down 12 mm or 30 mm positioning within the Z axis. When clamping the spindle, the fine adjusted position can be fixed and protected against unintended use. The miniature guides of these elevator stages are precise, however they can bear high loads.

The top quality black anodized protective coating of the aluminium parts prevents reflections or stray light almost completely.

  • travel up to 12 mm resp. 30 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low-backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • ways of installing
    - horizontal and upside down mountable
    - on optical table with MP-HTM100, MP-HTM150 or MP-HTM200
    - HT 60 and HT 100 on MT(M) 60

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
32.064.1231 HT 60-12

precision elevator stage, 12 mm travel

32.104.3031 HT 100-30

precision elevator stage, 30 mm travel

32.154.3031 HT 150-30

precision elevator stage, 30 mm travel

32.204.3031 HT 200-30

precision elevator stage, 30 mm travel

42.103.0000 MP-HTM100

mounting plate 112 x 112 x 10 mm

42.153.0000 MP-HTM150

mounting plate 162 x 162 x 10 mm

42.203.0000 MP-HTM200

mounting plate 212 x 212 x 10 mm
