Position Control Units PS 10

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ps_10.pdf

Description

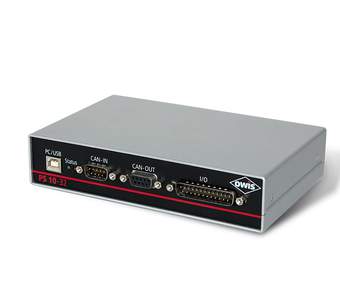

The PS 10 is a single-axis control unit which is configured for 2-phase step motors or DC servo motors.

With a network, which is based on CANbus system, several PS 10 can be operated together. Thus, a multipoint connection with a high transfer rate up to 32 devices is possible.

Micro-step mode with step motors via software guarantees smooth running and high resolution. Using this adjustment, a motor activity up to 128 micro steps per full step is possible.

A lot of in- and outputs like TTL, analogue and SPS are implemented for communication with different peripherals.

PS 10 for DC servo motor supports the complete A/B-Index, as well as TTL encoder signals up to a bandwidth of 7.5 MHz.

A point-to-point operation with a triangular or trapezoidal velocity profile is possible with the PS 10.

Part of delivery is an USB cable, a CD with the proven software tool OWISoft, the driver and SDK for C, C++, C#, LabView (V 8.2 and higher) and additional programming languages (32/64 bit). Thus, the PS 10 can be configured and operated comfortably.

Supported operating systems: Windows XP, Windows Vista (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit) and Windows 10 (32/64-Bit).

For power supply an external desktop power supply is required attached in accessories.

Foreign motors can also be operated.

  • single-axis control
  • for 2-phase step motors or DC servo motors
  • micro step mode up to 1/128
  • USB interface
  • 4 TTL and 4 analog inputs
  • 1 TTL and 4 SPS outputs (2 SPS outputs configurable as PWM)
  • point-to-point operation
  • programmable velocity profile
  • connection for motor break
  • crosslinking via bus interface
Art. Nbr. Type Title
55.10.2432 PS 10-32-SM

control unit for 2-phase step motor with multipoint circuit

55.11.2432 PS 10-32-DC

control unit for DC servo motor with multipoint circuit

53.20.S300 KAB-09-HD15-3

connecting cable 3 m long, shielded, for 2-phase step motor up to 1.8 A

53.20.D301 KAB-09-HD26-3

connecting cable 3 m, shielded, for DC servo motor (brush) up to 3.6 A

54.35.2490 NT-2490-SV

external desktop power supply unit for power supply of the controls PS 10, PS 30 and PS 35

51.450.2000 KAB-09-DS9-2

connecting cable 2 m long for PS 10-32

55.32.0202 PS 10-VK-24-02

connecting cable 2 m long for power supply from PS 10-32 to PS 10-32

55.32.0902 PS 10-32WID

terminating connectors (1 x male, 1 x female) for bus system of PS 10-32
