Non-magnetic XY Stages KT 65-UM

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_kt_65-um.pdf

Description

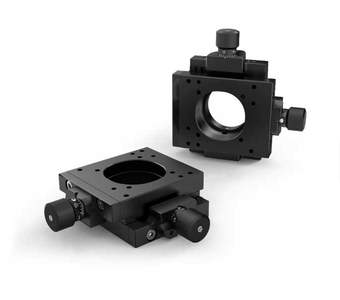

The KT 65-UM non-magnatic XY stages have a high-precision double-dovetail guide.

They allow fine adjustment in both X and Y direction. The aperture, 32 mm in diameter, is retained within the entire adjustment range.

The KT 65-UM non-magnatic XY stages are available with fine-thread spindles and graduated buttons. The travel is 6 mm on each axis.

The permeability of all materials is less than 1.01.

Non-magnetic slides or pins on request.

  • non-magnetic
  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with clamping
  • with fine-thread spindles
  • high load capacity
  • ways of installing:
    – on slide
    – on pin
Art. Nbr. Type Title
16.362.3300 KT 65-FGS-UM

non-magnetic XY stages KT 65-UM without slide/end plate

16.362.3320 KT 65-FGS-STAP-UM

non-magnetic XY stages KT 65-UM, with pin adapter plate
