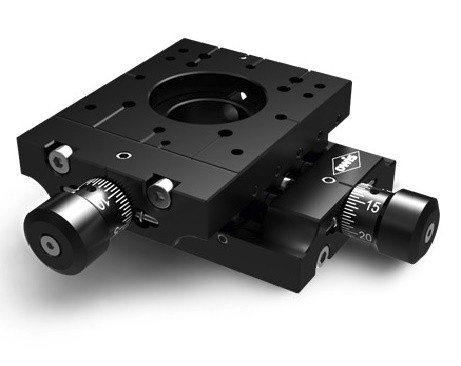

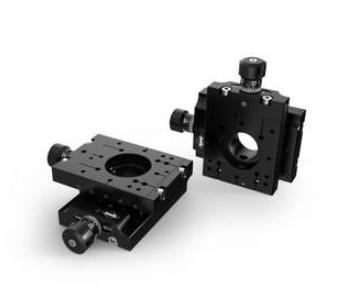

Non-Magnetic Miniature XY Stages KTA 40B-UM

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_kta_40b.pdf

Images


Description



The KTA 40B-UM non-magnetic miniature XY stages are made of materials with a permeability of less than 1.01.

The dimensions are the same as for the standard KTA 40B miniature XY stages.

The KTA 40B-UM non-magnetic miniature XY stages can be delivered with slide, pin adapter M6 or with end plate.

  • non-magnetic
  • for use with SYS 40
  • deformation-resistant aluminium
  • low-relecting, black anodized
  • with fine-thread spindels
  • flat design
  • low mass
  • ways of installing:
    – on slide
    – on pin

Options available:

- vacuum-prepared versions
- non-magnetic versions

Art. Nbr. Type Title
14.B42.0203.UM KTA 40B-D15-2EP-UM

Non-Magnetic Miniature XY Stage with aperture, with end plates (X, Y) and 6 mm (± 3 mm) travel at each axis (X, Y) and Spindle locking mechanism.
