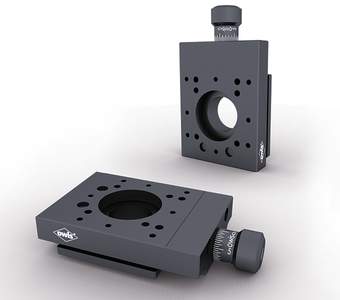

Non-Magnetic Miniature Translation Stages MVT 40B-Z-UM

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mvt_40b-z-um.pdf

Description

The MVT 40B-Z-UM non-magnetic miniature translation stages consist like the MKT 40B-UM non-magnetic miniature XY stages of materials with a permeability smaller than 1.01. Using these stages, non-magnetic XYZ setups can be realized, too.

The unit sizes of the tables correspond to the MVT 40B-Z. They are available both with and without end plate.

The dovetail guides maintain their accuracy over very long time and the fine-thread spindle with the scale button enables a sensitive adjustment.

  • non-magnetic
  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • travel 6 mm
  • aperture ø 15 mm
  • ways of installing
    - on slide
    - on pin

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
14.341.3300 MVT 40B-Z-FGS-UM

non-magnetic miniature translation stages

with fine-thread screw without end plate

14.341.3330 MVT 40B-Z-FGS-EP-UM

non-magnetic miniature translation stages

with fine-thread screw with end plate
