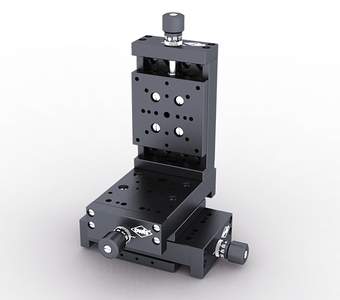

Non-Magnetic Measuring Stages MT 60-UM

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mt_60-um.pdf

Description

The MT 60-UM non-magnetic measuring stages consist of

non-magnetic materials only. The crossed roller bearing guides are made of hardened aliminium, the roles of ceramic. The fine-thread spindle is made of brass.

For the remaining components an aluminium alloy is used.

Fitting adapter plates are available on request.

  • non-magnetic
  • measuring range 25 mm
  • compact design
  • hardened aluminium guides with ceramic rolls
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with fine-thread spindle
  • for high-precision positioning
  • XYZ mounting without additional Z angle possible

Option
- non-magnetic versions available

Art. Nbr. Type Title
31.068.2531 MT 60-25-X-SK-UM

non-magnetic X measuring stages, 25 mm measuring range, with
fine-thread spindle

31.068.2532 MT 60-25-XY-SK-UM

non-magnetic XY measuring stages, 25 mm measuring range, with
fine-thread spindle

31.068.2533 MT 60-25-XYZ-SK-UM

non-magnetic XYZ measuring stages, 25 mm measuring range, with fine-thread spindle
