Mounts for Slack Optics G

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_g.pdf

Description

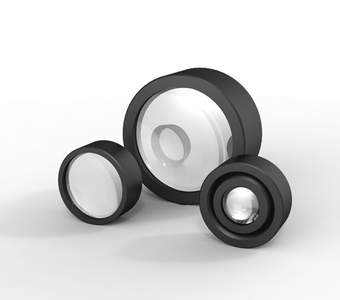

The internal and the external diameters of G mounts for slack optics are adapted to the optical elements and the optic holders. They serve the protection and the clear marking of the optics and furthermore, allow the repeatability of the assembly.

Some mounts are stepped in order to retain optics with metric diameters as well as with inch diameters.

All mounts with step will be delivered with clamping ring without step.

  • for optics with ø 8 mm up to 50.8 mm
  • reflection-poor, black anodized

Option
- non-magnetic versions available

Art. Nbr. Type Title
69.911.1008 G 16-8-D10

mounts ø 16 x 8 mm, for slack optics 10.0/⅜“, with clamping ring

69.911.1308 G 16-9-D13

mounts ø 16 x 8 mm, for slack optics, 12.5/0.5" with clamping ring

69.912.0810 G 25-10-D8

mounts ø 25 x 10 mm, for slack optics ø 8 mm, with clamping ring

69.912.1310 G 25-10-D12

mounts ø 25 x 10 mm, for slack optics ø 12,5 mm / 12,7 mm (0,5"), with clamping ring

69.912.1510 G 25-10-D15

mounts ø 25 x 10 mm, for slack optics n ø 15 mm, with clamping ring

69.912.2210 G 25-10-D22

mounts ø 25 x 10 mm, for slack optics ø 22.4 mm, with clamping ring

69.913.2510 G 30-10-D25

mounts ø 30 x 10 mm, for slack optics ø 25 mm / 25,4 mm (1"), with clamping ring

69.913.2513 G 35-13-D25

mounts ø 35 x 12.5 mm, for slack optics ø 25 mm / 25,4 mm (1"), with clamping ring

69.913.3213 G 35-13-D32

mounts ø 35 x 12.5 mm, for slack optics ø 31.5 mm, with clamping ring

69.914.4020 G 45-20-D40

mounts ø 45 x 20 mm, for slack optics ø 40 mm / 38.1 mm (1.5"), with clamping ring

69.915.5020 G 56-20-D50

mounts ø 56 x 20 mm, for slack optics ø 50 mm / 50,8 mm (2"), with clamping ring

69.951.1308 VSR M14-D13

clamping ring for G 16-8-D13

69.951.1008 VSR M14-D10

clamping ring for G 16-8-D10

69.952.1310 VSR M23-D12

clamping ring for G 25-10-D12

69.952.0810 VSR M23-D8

clamping ring for G 25-10-D8

69.952.1510 VSR M23-D15

clamping ring for G 25-10-D15

69.952.2210 VSR M23-D22

clamping ring for G 25-10-D22

69.953.2510 VSR M28-D25

clamping ring for G 30-10-D25 und G 35-13-D25

69.953.3213 VSR M33-D33

clamping ring for G 35-13-D32

69.954.4020 VSR M42-D40

clamping ring for G45-20-D40

69.955.5020 VSR M53-D50

clamping ring for G 56-20-D50
