Mounting Cubes W 65-4

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_w_65_4.pdf

Description

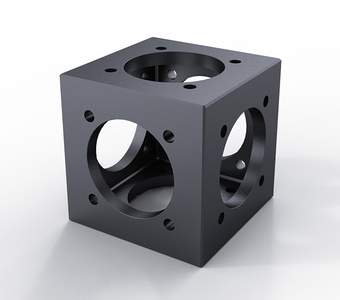

The W 65-4 mounting cubes join up to five profiles at a single junction. Apart from slides RT 65 they are the most important components for beam deflection, portals and other frameworks.

Beam deflection within a profile S 65-4 may be necessary for reasons of safety, or for protection against air currents and dust particles.

There are special adjustable inserts for the W 65-4 mounting cubes which make it possible to carry out beam deflections within a profile S 65-4.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • wide field of application
  • extensive accessories

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
16.094.0600 W 65-4

mounting cube for SYS 65

16.094.3031 BD-W65-4

blank cover for 65-4 series cubes

16.900.0002 ADP-S65-S40

adapter ring for SYS 40 components to W 65

16.900.0003 ADP-S65-S40-20

adapter plate für SYS 40 components in SYS 65

16.094.0100 MP 65-4-H

mounting plate for profile S 65-4, horizontal

16.094.0110 NF 65-4

levelling foot for profile S 65-4 with adjustment screws

16.094.0200 MP 65-4-V

mounting plate for profile S 65-4, vertical

16.094.0400 MAGP-S65-4

magnetic plate for profile 65-4

16.094.0300 VEP-S65-4

connecting and end plate for profile S 65-4

16.094.0900 GF 65-4

adjustable foot for profile S 65-4

16.094.0700 KON-S65-4

bracket for profile S 65-4

16.094.0800 DF-S65-4

rotary base for profile S 40-4 and S 65-4
