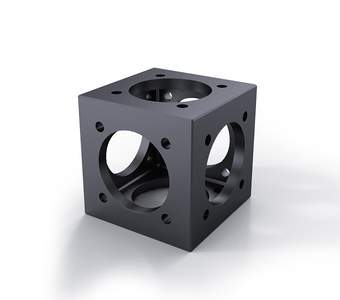

Mounting Cubes W 40-4

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_w_40-4.pdf

Description

The W 40-4 mounting cubes join up to five profiles at a single junction. Apart from slides RT 40, they are the most important components for beam deflection, portals and other frameworks.

Beam deflection within a profile S 40-4 may be necessary for reasons of safety, or for protection against air currents and dust particles.

There are special adjustable inserts for the W 40-4 mounting cubes which make it possible to carry out beam deflections within a profile S 40-4.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • wide field of application
  • extensive accessories

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.094.0600 W 40-4

mounting cube for SYS 40

14.094.3031 BD-W40-4

blank cover for W 40-4 series cubes

14.094.0691 ADP-W40-4-W40

adapter plate for W 40-4 series cubes to W 40

14.094.0100 MP 40-4-H

mounting plate fpr profile S 40-4, horizontal

14.094.0110 NF 40-4

levelling foot for profile S 40-4 with adjusting screws

14.094.0200 MP 40-4-V

mounting plate for profile S 40-4, vertical

14.094.0400 MAGP-S40-4

magnetic plate for profile S 40-4

14.094.0300 VEP 40-4

connecting and end plate for profile S 40-4

14.094.0700 KON-S40-4

bracket for profile S 40-4

16.094.0800 DF-S65-4

rotary base for profile S 40-4 and S 65-4
