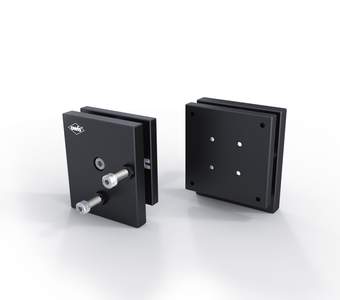

Mirror Mounts, kinematic K 50

External URL owis.eu
DATASHEET pi_k_50.pdf

Description

The K 50 kinematic mirror mounts are suitable for front surface mirrors in the size range of 25 mm / 25.4 mm (1") to 50 mm / 50.8 mm (2").

With the slotted base plate FP-K50-LL, the mirror mounts are for use with SYS 40 without a rail-slide combination.

The mirror holders are available for rectangular as well as round mirrors.

The mirror mounts can be supplied with fine-thread screws or micrometers.

  • for use with SYS 40 and SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ways of installing
    - with one M6 or two M4 threaded holes
    - on pin, either directly, or via a base plate, in that case the slot can be used to bring the reflecting surface
      onto the centerline of the pin
    - with two M4 screws on a slide RT 65, or over the central M6 thread on a slide with slotted hole
      RT 65-40-R-LL

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.105.0001 K 50-FGS

mirror mounts, kinematic, with fine-thread screws

26.105.0002 K 50-MS

mirror mounts, kinematic, with micrometers

26.105.9126 SF 26

mirror holder for 26 mm height

26.105.9151 SF 51

mirror holder for 51 mm height

26.105.9201 SF-D26-D40

mirror holder for ø 25 mm / 25.4 mm (1") or ø 40 mm / 38.1 mm (1.5")

26.105.9202 SF-D45-D51

mirror holder for ø 40 mm or ø 51 mm

26.105.9001 FP-K50-LL

base plate 45 x 30 x 7,5 mm, with slotted hole

16.021.0020 RT 65-20-R

slide RT 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

16.021.3040 RT 65-40-R-LL

slide RT 65, 40 mm, with slotted hole and knurled screw

16.022.3040 RT 65-40-M4-LL

slide RT 65, 40 mm, with slotted hole for M6 and hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
