Mirror Mounts, kinematic K 100

External URL owis.eu
DATASHEET pi_k_100.pdf

Description

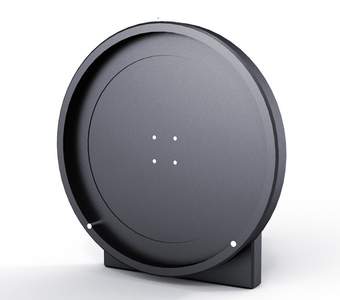

The K 100 kinematic mirror mounts are delivered for circular mirrors in three different sizes: ø 101.6 mm (4"),
ø 127 mm (5") and ø 152.4 mm (6"). The mirror holders are intended to retain the mirrors directly. The two-point support plate with two steel pins ensures a definied position of the mirrors in the mounts and good repeatability, too. A plastic bolt clamps the mirrors with low forces.

The center heights of the K 100 are chosen in the way that all versions are SYS 90 compatible ø 101.6 mm (4"), ø 127 mm (5") and ø 152.4 mm (6") on base plate FP 70x70x15).

The mirror mounts can be supplied with fine-thread screws or micrometers.

Mirror mounts with motorization can be supplied on request.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • two-point support plate with hardened steel pins
  • ways of installing
    - for use with SYS 90 direct on optical table with base plate FP 70x70x15
    - on pin with pin adapter

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
26.110.1001 K 100-D100-FGS

mirror mounts K 100, kinematic, for ø 101.6 mm (4") optics, with fine-thread screws

26.110.1002 K 100-D100-MS

mirror mounts K 100, kinematic, for ø 101.6 mm (4") optics, with micrometers

26.110.1251 K 100-D125-FGS

mirror mounts K 100, kinematic, for ø 127 mm (5") optics, with fine-thread screws

26.110.1252 K 100-D125-MS

mirror mounts K 100, kinematic, for ø 127 mm (5") optics, with micrometers

26.110.1501 K 100-D150-FGS

mirror mounts K 100, kinematic, for ø 152.4 mm (6") optics, with fine-thread screws

26.110.1502 K 100-D150-MS

mirror mounts K 100, kinematic, for ø 152.4 mm (6") optics, with micrometers

26.907.0015 FP 70x70x15

base plate 70 x 70 x 15 mm

21.115.8325 STF 15-25-AM8-3

pin adapter M6-M8
