Miniature XY Stages with aperture KTA 40C
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_kta_40c.pdf
Description

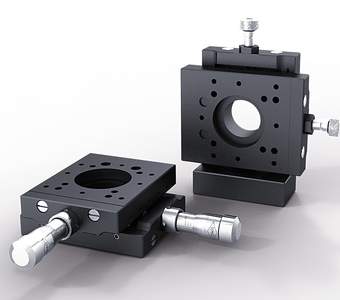

The MKT 40C miniature XY stages have been optimized regarding their flat form and are alternativly available with fine-thread screws or with micrometers.
The backlash is minimized through the spring return.
- for use with SYS 40 and SYS 65
- deformation-resistant aluminium
- reflection-poor, black anodized
- with fine-thread screws or micrometers
- flat design
- low mass
- ways of installing:
– on slide
– on pin
Option
- non-magnetic versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 14.342.2110 | MKT 40C-XY-FGS-RT40 |
miniature XY stage with fine-thread screws, on slide RT 40-16-R |
| 14.342.2120 | MKT 40C-XY-FGS-STAP |
miniature XY stage with fine-thread screws, with pin adapter plate |
| 14.342.2130 | MKT 40C-XY-FGS-EP |
miniature XY stage with fine-thread screws, with end plate |
| 14.342.2210 | MKT 40C-XY-MS-RT40 |
miniature XY stage with micrometers, on slide RT 40-16-R |
| 14.342.2220 | MKT 40C-XY-MS-STAP |
miniature XY stage with micrometers and pin adapter plate |
| 14.342.2230 | MKT 40C-XY-MS-EP |
miniature XY stage with micrometers, with end plate |
| 14.349.0325 | OH 40-D25-LTD40B |
mounting plate MKT 40, ø 25 mm |
| 14.349.0326 | OH 40-D26-LTD40B |
mounting plate for MKT 40C, MKT 40B, MVT40C-XYZ, ø 25 mm / 25.4 mm (1") |
