Miniature XY Stages MKT 30

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mkt_30.pdf

Description

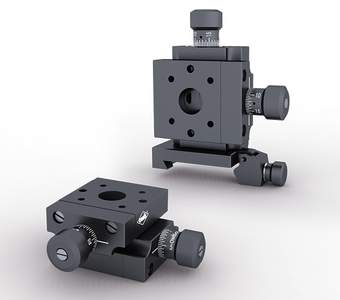

The MKT 30 miniature XY stages are made for adjustment tasks in smallest areas. With an edge length of only 30 mm, they provide an opening of ≥7 mm for the complete travel range of 3 mm (±1.5 mm).

The MKT 30 are supplied with fine-thread spindles and a graduated button. They can bear equally large loads in both directions thanks to forced return travel of the slide.

The MKT 30-D10-S miniature XY stages mounted on slides RT 40 have the beam height of the SYS 40.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with fine-thread spindle
  • compact design
  • low mass
  • ways of installing:
    – on rail
    – on pin

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.332.1310 MKT 30-D10-RT40

miniature XY stages MKT 30, on slide RT 40-20-R

14.332.1320 MKT 30-D10-S

miniature XY stages MKT 30, with pin adapter plate

14.332.1330 MKT 30-D10-EP

miniature XY stages MKT 30, with end plate

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

STF 15

pin 15 - s. product information STF 15
