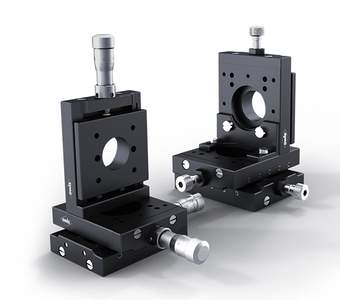

Miniature Translation Stages MVT 40C-XYZ

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mvt_40c-xyz.pdf

Description

The MVT 40C-XYZ miniature translation stages have been optimized regarding their flat form and are alternativly available with fine-thread screws or with micrometers.

The backlash is minimized through the spring return.

The TRANS 40 transmitting mounts can be mounted on request.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with fine-thread screws or micrometers
  • flat design • low mass
  • ways of installing
    - on slide

Option
- non-magnetic versions available

Art. Nbr. Type Title
14.343.2100 MVT 40C-XYZ-FGS-EP

miniature translation stage XYZ version, with fine-thread screws, with end plates

14.343.2200 MVT 40C-XYZ-MS-EP

miniature translation stage XYZ version, with micrometers, with end plates

14.343.4100 MVT 40C-XYZ-FGS

miniature translation stage XYZ version, with fine-thread screws, for use with SYS 40

14.343.4200 MVT 40C-XYZ-MS

miniature translation stage XYZ version, with micrometers, for use with SYS 40

14.349.0325 OH 40-D25-LTD40B

mounting plate MKT 40, ø 25 mm

14.349.0326 OH 40-D26-LTD40B

mounting plate for MKT 40C, MKT 40B, MVT40C-XYZ, ø 25 mm / 25.4 mm (1")

14.021.0034 RT 40-34-R

slide SYS 40, 34 mm, with knurled screw
