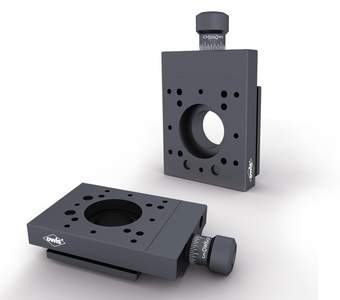

Miniature Translation Stages MVT 40B-Z

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mvt_40b-z.pdf

Description

The MVT 40B-Z miniature translation stages are preloaded with springs and therefore backlash-free.

A fine-thread spindle enables sensitive adjustment.

The dovetail guides are adjustable and maintain their accuracy over very long time.

The MVT 40B-Z are SYS 40 compatible, when mounted on slide RT 40.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with fine-thread spindle
  • compact design
  • low mass
  • ways of installing
    - on slide
    - on pin

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.341.1300 MVT 40B-D15-Z-SK

miniature translation stage MVT 40B Z, without slide/end plate

14.341.1330 MVT 40B-D15-Z-SK-EP

miniature translation stage MVT 40B Z, with end plate

14.340.2000 RT 40-16-R-MVT 40

slide SYS 40, 16 mm, for MVT 40/MKT 40/KTM 40, with knurled screw

14.021.0034 RT 40-34-R

slide SYS 40, 34 mm, with knurled screw

14.341.1302 ADP 40-DTF

pin adapter for MVT 40(B), MKT 40 und WV 40
