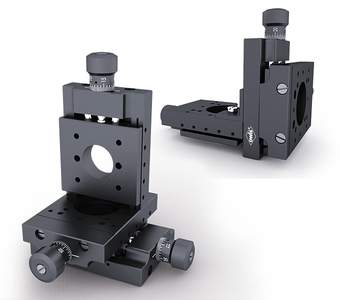

Miniature Translation Stages MVT 40B-XYZ
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_mvt_40b-xyz.pdf
Description
The MVT 40B-XYZ miniature translation stages are preloaded with springs and therefore backlash-free. Fine-thread spindles with graduated button enable sensitive adjustment. The dovetail guides are adjustable and maintain their accuracy over very long time.
The MVT 40B-D15-XYZ-SK are for use with SYS 40, when mounted on slide RT 40-34. Integration for use with SYS 65 on request.
The MVT 40B-D15-XYZ-SK are 3-axis combinations, where the Z-axis is assembled with inwards slide.
- for use with SYS 40
- deformation-resistant aluminium
- reflection-poor, black anodized
- with fine-thread spindle
- compact design
- low mass
- ways of installing
- on slide
Option
- non-magnetic or vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 14.343.1330 | MVT 40B-D15-XYZ-SK-EP | miniature translation stage MVT 40B XYZ, spindle with graduated knob, with end plates |
| 14.343.4330 | MVT 40B-D15-XYZ-SK | miniature translation stage MVT 40B, XYZ version, Z axis with downwards assembled slide, XY without end plates |
| 14.349.0325 | OH 40-D25-LTD40B | mounting plate MKT 40, ø 25 mm |
| 14.349.0326 | OH 40-D26-LTD40B | mounting plate MVT40B-XYZ, ø 25 mm / 25.4 mm (1"), only for 14.343.433 |
| 14.021.0034 | RT 40-34-R | slide SYS 40, 34 mm, with knurled screw |
