Miniature Translation Stages MVT 30-Z
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_mvt_30-z.pdf
Description

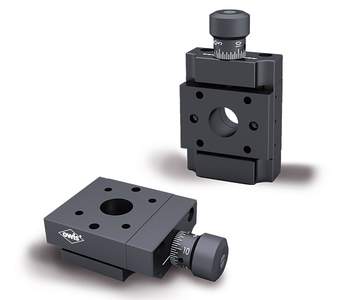

The MVT 30-Z miniature translation stages are made for adjustment tasks in smallest areas. With an edge length of only 30 mm, they provide an opening of ≥7 mm for the complete travel range of 3 mm (±1.5 mm).
The MVT 30-Z are supplied with fine-thread spindles and a graduated button. They can bear equally large loads in both directions thanks to forced return travel of the slide.
The MVT 30-Z miniature translation stages with the pin adapter plate mounted on slides RT 40 have the beam height of the SYS 40.
- for use with SYS 40
- deformation-resistant aluminium
- reflection-poor, black anodized
- with fine-thread spindle
- compact design
- low mass
- ways of installing:
- on slide
- on pin
Option
- non-magnetic or vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 14.331.1320 | MVT 30-D10-Z-S | miniature translation stages MVT 30-Z, with pin adapter plate |
| 14.331.1330 | MVT 30-D10-Z-EP | miniature translation stages MVT 30-Z, with end plate |
| 14.021.0020 | RT 40-20-R | slide SYS 40, 20 mm, with knurled screw |
| STF 15 | pin 15 - s. product information STF 15 |
