Micrometers MS

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ms.pdf

Description

The OWIS® MS micrometers have hardened and precisely grounded spindles. Measurement drum and bush are matt chrome plated and therefore offer greatest possible contrast to the scale lines. A hardened steel ball is embedded in the spindle as a thrust piece. Therefore, these micrometers are particularly suited as highly precise actuators.

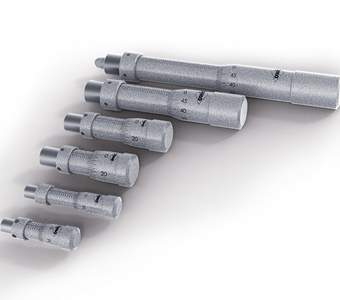

The micrometers are available in three sizes. They differ in the drum- and brushing diameter, in the spindle pitch, the fastening thread as well as in the travels between 6.0 and 50.0 mm.

The micrometers MS 6 are equipped with a fastening thread of M6 x 0.5, MS 9 with M9 x 0.5 and MS 12 with M12 x 0.5.

With the corresponding counter nuts the micrometers can be fixed after mounting.

  • accuracy according to DIN 863
  • measuring drum and bush matt chrome plated
  • graduation of scale: 5 µm (MS 6 and MS 9) resp. 10 µm (MS 12)
  • indication range 6 mm, 10 mm, 12 mm, 15 mm, 25 mm and 50 mm, depending on type
  • spindle pitch 0.25 mm or 0.5 mm, depending on type

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
91.206.1062 MS 6-6

micrometer with 6 mm measuring range, mounting thread M6 x 0.5

91.206.1122 MS 6-12

micrometer with 12 mm measuring range, mounting thread M6 x 0.5

91.209.1102 MS 9-10

micrometer with 10 mm measuring range, mounting thread M9 x 0.5

91.209.1152 MS 9-15

micrometer with 15 mm measuring range, mounting thread M9 x 0.5

91.212.1255 MS 12-25

micrometer with 25 mm measuring range, mounting thread M12 x 0.5

91.212.1505 MS 12-50

micrometer with 50 mm measuring rane, mounting thread M12 x 0.5
