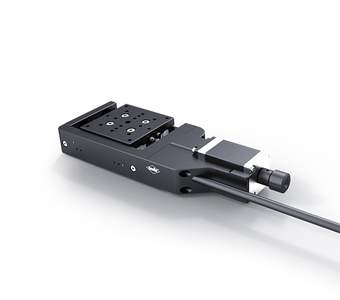

Measuring Stages MTM 60

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mtm_60.pdf

Description

The motorized MTM 60 measurig stages are designed for applications where precision and very compact mechanical dimensions are primarily demanded. Combinations of XY or XYZ mountings with very small space confignments are also possible.

The use of special cross roller bearings and precision fine-thread spindle with 0.5 mm pitch allow a good positioning accuracy and repeatability of a few micrometers.

The MTM 60 measuring stages have two different versions of limit switches - mechanical or electronical. The versions with Hall-effect limit switches allows a high reproducibility of the reference point.

  • travel 10 mm, 20 mm and 45 mm
  • compact design
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • preloaded precision crossed roller bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC servo motor with encoder
  • XYZ mounting
  • with OWISid
Art. Nbr. Type Title
41.062.10AN MTM 60-10-HiSM

measuring stages, 10 mm travel, with step motor and Hall-effect limit switches

41.062.21AN MTM 60-21-HiSM

measuring stages, 20 mm travel, with step motor and Hall-effect limit switches

41.062.45AN MTM 60-45-HiSM

measuring stages, 45 mm travel, with step motor and Hall-effect limit switches

41.062.10BN MTM 60-10-MiSM

measuring stages, 10 mm travel, with step motor and mechanical limit switches

41.062.21BN MTM 60-21-MiSM

measuring stages, 20 mm travel, with step motor and mechanical limit switches

41.062.45BN MTM 60-45-MiSM

measuring stages, 45 mm travel, with step motor and mechanical limit switches

41.062.10GT MTM 60-10-HiDS

measuring stages, 10 mm travel, with DC servo motor and Hall-effect limit switches

41.062.21GT MTM 60-21-HiDS

measuring stages, 20 mm travel, with DC servo motor and Hall-effect limit switches

41.062.45GT MTM 60-45-HiDS

measuring stages, 45 mm travel, with DC servo motor and Hall-effect limit switches

41.062.10WT MTM 60-10-MiDS

measuring stages, 10 mm travel, with DC servo motor and mechanical limit switches

41.062.21WT MTM 60-21-MiDS

measuring stages, 20 mm travel, with DC servo motor and mechanical limit switches

41.062.45WT MTM 60-45-MiDS

measuring stages, 45 mm travel, with DC servo motor and mechanical limit switches

31.999.0120 MP 120M

Mounting plates MP 120/170 (120 x 70 x 8 mm) for mounting measuring and translation stages as well as other OWIS components up to 90 or 140 mm in width on optical tables or grid plates with M6 threaded holes. The spacing between the holes is 100 mm.

41.063.0001 MONT-LT(M) 60-Z

Z assembly bracket, for LT 60, LTM 60, LTM 60P, F and M, LIMES 60 and LIMES 64

90.999.0015 SST.F15

grease for spindles,5 ml, in applicator

90.999.0001 SST.F1

grease for guides, 5 ml, in applicator
