Measuring Stages MTM 120

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mtm_120.pdf

Description

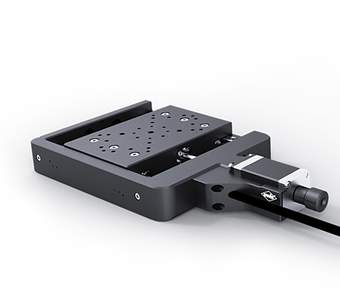

The motorized MTM 120 measurig stages are designed for applications where precision and very compact mechanical dimensions are primarily demanded. Combinations of XY or XYZ mountings with very small space confignments are also possible, without an additional mounting bracket.

The use of special cross roller bearings and precision fine-thread spindle with 0.5 mm pitch allow a good positioning accuracy and repeatability of a few micrometers. Furthermore, these units are ideal in applications with high requirements concerning resolution and smooth linear motion.

The MTM 120 measurig stages have two different versions as to the limit switches - mechanical or electronical. The versions with Hall-effect limit switches allows a high reproducibility of the reference point.

  • measuring range 20 mm and 45 mm
  • compact design
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low-backlash
  • preloaded precision crossed roller bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC servo motor with encoder
  • XYZ mounting without additional Z angle possible
  • with OWISid
Art. Nbr. Type Title
41.122.20AN MTM 120-20-HiSM

measuring stages, 20 mm travel, with step motor and Hall-effect limit switches

41.122.45AN MTM 120-45-HiSM

measuring stages, 45 mm travel, with step motor and Hall-effect limit switches

41.122.20BN MTM 120-20-MiSM

measuring stages, 20 mm travel, with step motor and mechanical limit switches

41.122.45BN MTM 120-45-MiSM

measuring stages, 45 mm travel, with step motor and mechanical limit switches

41.122.20GT MTM 120-20-HiDS

measuring stages, 20 mm travel, with DC servo motor and Hall-effect limit switches

41.122.45GT MTM 120-45-HiDS

measuring stages, 45 mm travel, with DC servo motor and Hall-effect limit switches

41.122.20WT MTM 120-20-MiDS

measuring stages, 20 mm travel, with DC servo motor and mechanical limit switches

41.122.45WT MTM 120-45-MiDS

measuring stages, 45 mm travel, with DC servo motor and mechanical limit switches

41.122.0001 MONT-MTM120-Z

Z assembly bracket for MTM 120

90.999.0015 SST.F15

grease for spindles,5 ml, in applicator

90.999.0001 SST.F1

grease for guides, 5 ml, in applicator
