Measuring Stages MT 75

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mt_75.pdf

Description

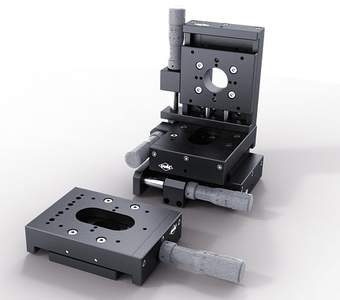

The MT 75 measuring stages with 25 mm measuring range are available with central or lateral micrometer.

The MT 75 have a central opening of ø 25 mm which is retained within the entire adjustment range.

The measuring stages can also be mounted slide-on-slide.

  • measuring range 25 mm
  • compact design
  • preloaded precision crossed roller bearing guides
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with central or lateral micrometers
  • aperture 25 mm
  • XYZ mounting without additional Z angle possible
  • way of installing:
    – on optical table with mounting plate MP 120M or MP 170M

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
31.074.2581 MT 75-25-D25-X-MS

measuring stages MT 75 X, 25 mm measuring range, with central micrometer

31.074.2582 MT 75-25-D25-XY-MS

measuring stages MT 75 XY, 25 mm measuring range, with central micrometers

31.074.2583 MT 75-25-D25-XYZ-MS

measuring stages MT 75 XYZ, 25 mm measuring range, with central micrometers

31.074.2591 MT 75S-25-D25-X-MS

measuring stages MT 75 X, 25 mm measuring range, with lateral micrometer

31.074.2592 MT 75S-25-D25-XY-MS

measuring stages MT 75 XY, 25 mm measuring range, with lateral micrometers

31.074.2593 MT 75S-25-D25-XYZ-MS

measuring stages MT 75 XYZ, 25 mm measuring range, with lateral micrometers

31.999.0120 MP 120M

Mounting plates MP 120/170 (120 x 70 x 8 mm) for mounting measuring and translation stages as well as other OWIS components up to 90 or 140 mm in width on optical tables or grid plates with M6 threaded holes. The spacing between the holes is 100 mm.

31.999.0170 MP 170M

Mounting plates MP 120/170 (170 x 70 x 8 mm) for mounting measuring and translation stages as well as other OWIS components up to 90 or 140 mm in width on optical tables or grid plates with M6 threaded holes. The spacing between the holes is 150 mm.
