Measuring Stages MT 60
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: 4ec4c3b4_pi_mt_60.pdf
Description

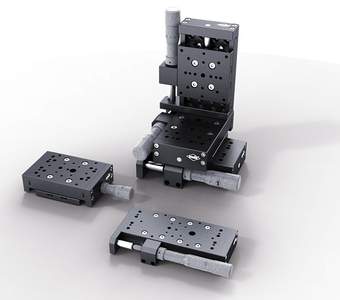

MT 60 stands for a whole line of proven 60 mm wide measuring stages with crossed roller bearing guides.
According to different requirements, the MT 60 measuring stages are available with measuring ranges of 15 mm, 25 mm and 50 mm and also with either a central or a lateral micrometer.
- measuring ranges 15 mm, 25 mm or 50 mm
- compact design
- preloaded precision crossed roller bearing guides
- deformation-resistant aluminium
- reflection-poor, black anodized
- with central or lateral micrometers
- for high-precision positioning
- XYZ mounting without additiional Z angle possible
Option
- non-magnetic or vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 31.063.1581 | MT 60-15-X-MS |
measuring stage MT 60, X, 15 mm measuring range, with central micrometer |
| 31.063.1582 | MT 60-15-XY-MS |
measuring stage MT 60, XY, 15 mm measuring range, with central micrometers |
| 31.063.1583 | MT 60-15-XYZ-MS |
measuring stage MT 60, XYZ, 15 mm measuring range, with central micrometers |
| 31.063.2581 | MT 60-25-X-MS |
measuring stage MT 60, X, 25 mm measuring range, with central micrometer |
| 31.063.2582 | MT 60-25-XY-MS |
measuring stage MT 60, XY, 25 mm measuring range, with central micrometers |
| 31.063.2583 | MT 60-25-XYZ-MS |
measuring stage MT 60, XYZ, 25 mm measuring range, with central micrometers |
| 31.063.2591 | MT 60S-25-X-MS |
measuring stage MT 60, X, 25 mm measuring range, with lateral micrometer |
| 31.063.2592 | MT 60S-25-XY-MS |
measuring stage MT 60, XY, 25 mm measuring range, with lateral micrometers |
| 31.063.2593 | MT 60S-25-XYZ-MS |
measuring stage MT 60, XYZ, 25 mm measuring range, with lateral micrometers |
| 31.063.5091 | MT 60S-50-X-MS |
measuring stage MT 60, X, 50 mm measuring range, with lateral micrometer |
| 31.063.5092 | MT 60S-50-XY-MS |
measuring stage MT 60, XY, 50 mm measuring range, with lateral micrometers |
| 31.063.5093 | MT 60S-50-XYZ-MS |
measuring stage MT 60, XYZ, 50 mm measuring range, with lateral micrometers |
