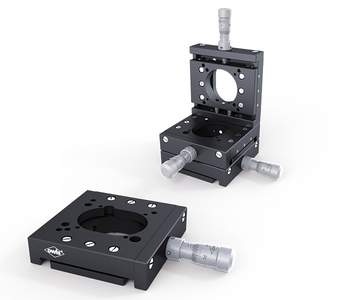

Measuring Stages MT 50

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mt_50.pdf

Description

The MT 50 measuring stages with crossed roller bearing guides are principally conceived for holding optical components.

For mounting vertically to the optical axis, they have a central aperture of 22 mm. They are only 12.5 mm thick. This makes very compact configurations possible.

The MT 50 can also be used in SYS 40 under certain conditions.

  • measuring range 6 mm
  • compact design
  • preloaded precision crossed roller bearing guides
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with micrometers
  • for optics up to 25 mm
  • free aperture 22 mm
  • XYZ mounting without aditional Z angle possible

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
31.054.0681 MT 50-6-X-MS

measuring stages X, 6 mm measuring range, with central micrometer

31.054.0682 MT 50-6-XY-MS

measuring stages XY, 6 mm measuring range, with central micrometers

31.054.0683 MT 50-6-XYZ-MS

measuring stages XYZ, 6 mm measuring range, with central micrometers
