Measuring Stages MT 45

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mt_45.pdf

Description

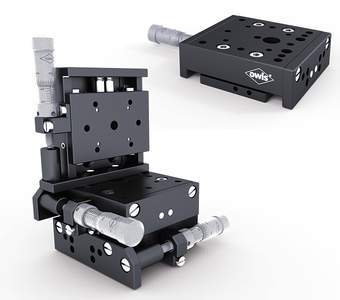

The MT 45 measuring stages are available with central micrometer as well as with laterally attached micrometer.

The preloaded precision crossed roller bearing guides enable slip-stick free positioning even at maximum load. In addition, the MT 45 can also be motorized, if necessary.

  • measuring range 12 mm
  • compact design
  • preloaded precision crossed roller bearing guides
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with central or lateral micrometers
  • XYZ mounting without additional Z angle possible
  • way of installing:
    – on optical table with adapter plate ADP 60-A

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
31.043.1381 MT 45-13-X-MS

X measuring stages,12 mm measuring range, with central micrometer

31.043.1382 MT 45-13-XY-MS

XY measuring stages, 12 mm measuring range, with central micrometers

31.043.1383 MT 45-13-XYZ-MS

XYZ measuring stages, 12 mm measuring range, with central micrometers

31.043.1391 MT 45S-13-X-MS

X measuring stages, 12 mm measuring range, with lateral micrometer

31.043.1392 MT 45S-13-XY-MS

XY measuring stages, 12 mm measuring range, with lateral micrometers

31.043.1393 MT 45S-13-XYZ-MS

XYZ measuring stages, 12 mm measuring range, with lateral micrometers

24.900.6010 ADP 60-A

adapter plate 60-A (60 x 60 x 7.5 mm), for mounting SYS 40 and SYS 65 components, VT 45 translation stages, and MT 45 and 50 measuring stages on 50 mm 4 x M4 bore grids.
