Measuring Stages MT 30

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mt_30.pdf

Description

The proven measuring stages of the MT 30 series have a compact design and a broad range of R&D and industrial applications.

They allow space-saving high-precision positioning of small components. The M6 center holes have an aperture of 4.8 mm. They can be used for various micro-optical applications as well as for mounting MT 30 stages on pin adapters.

All aluminium parts have a top-quality black anodized protective coating.

  • measuring range 5 mm
  • very compact design
  • preloaded linear ball bearing guides
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with micrometers
  • aperture for micro-optical applications
  • ways of installing:
    – on optical table with adapter plate ADP 65-A
    – on goniometers (MO)GO 65 with adapter plate ADP 60-A
    – XYZ mounting without additional Z angle possible

Option - vacuum-prepared versions available

Art. Nbr. Type Title

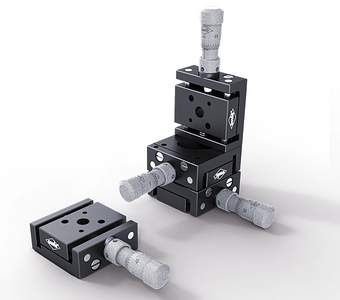

31.035.0581 MT 30-5-X-MS

X measuring stages, 5 mm measuring range, with central micrometer

31.035.0582 MT 30-5-XY-MS

XY measuring stages, 5 mm measuring range, with central micrometer

31.035.0583 MT 30-5-XYZ-MS

XYZ measuring stages, 5 mm measuring range, with central micrometer

24.900.6010 ADP 60-A

adapter plate 60-A (60 x 60 x 7.5 mm), for mounting SYS 40 and SYS 65 components, VT 45 translation stages, and MT 45 and 50 measuring stages on 50 mm 4 x M4 bore grids.

24.900.6510 ADP 65-A

adapter plate 65-A (65 x 60 x 10 mm), for vertical mounting of measuring and translation stages as well as TRANS 65G and TRANS 90G on optical tables with M6 bore grids. Also for mounting small moveable stages in a vertical position and for mounting XY and XYZ combinations.
